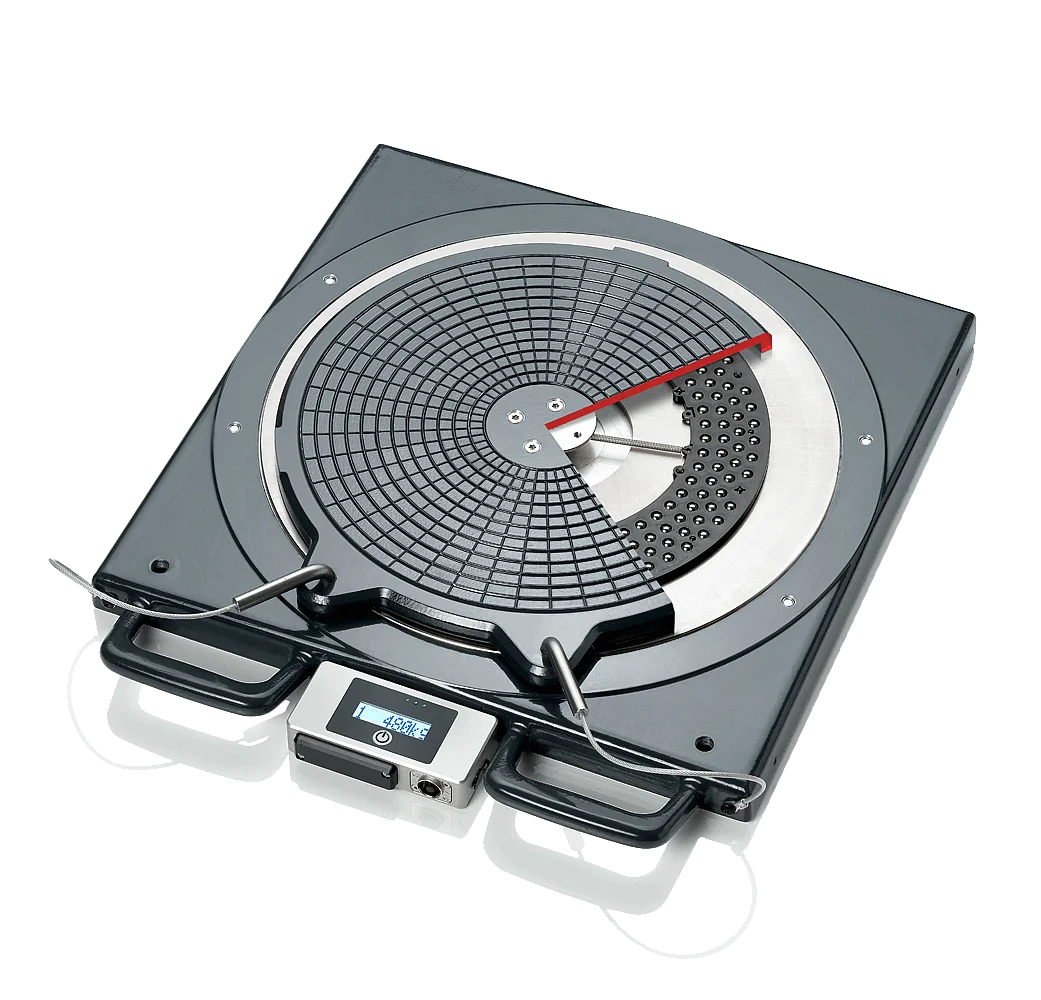

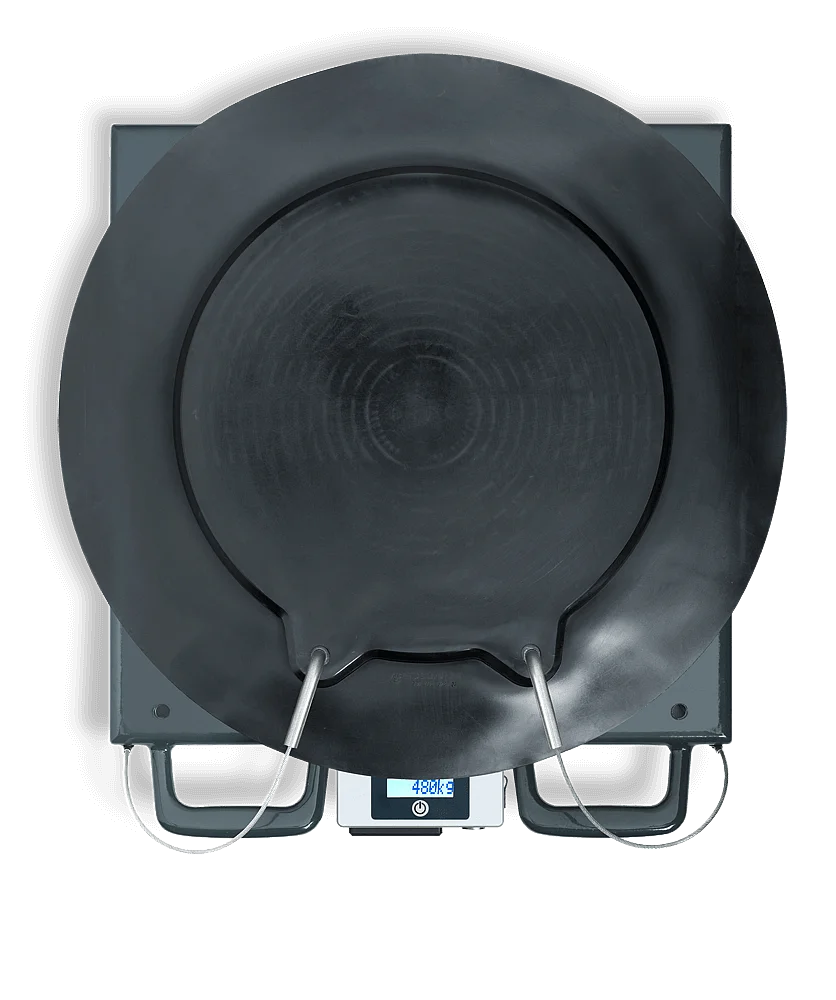

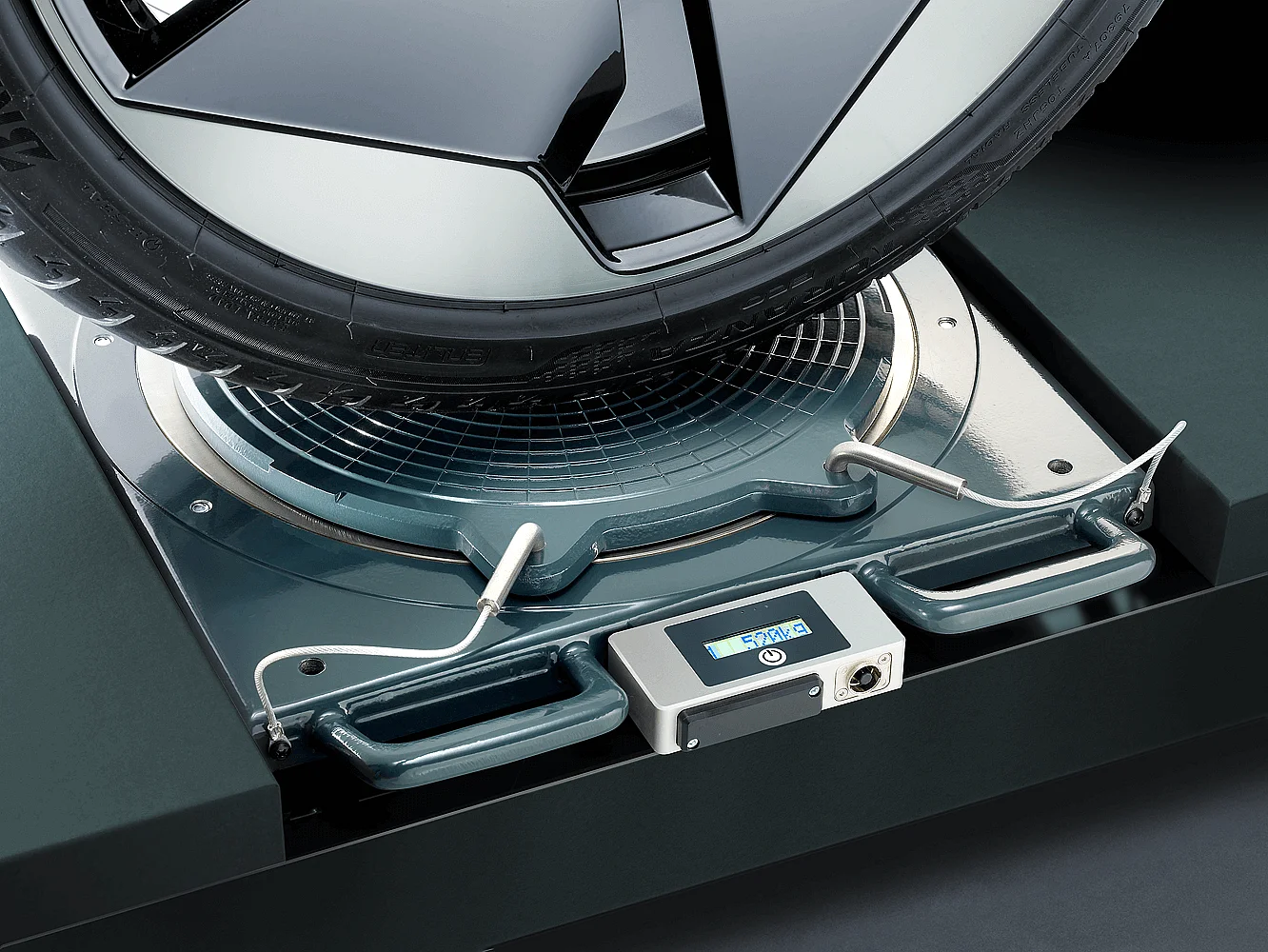

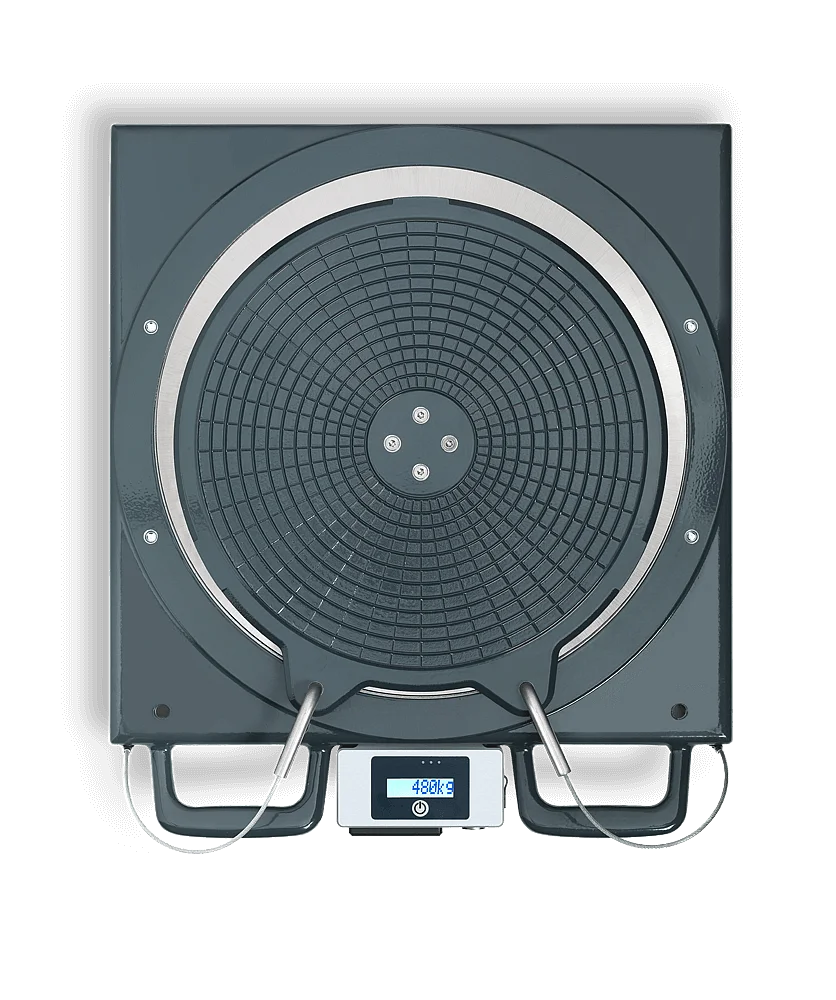

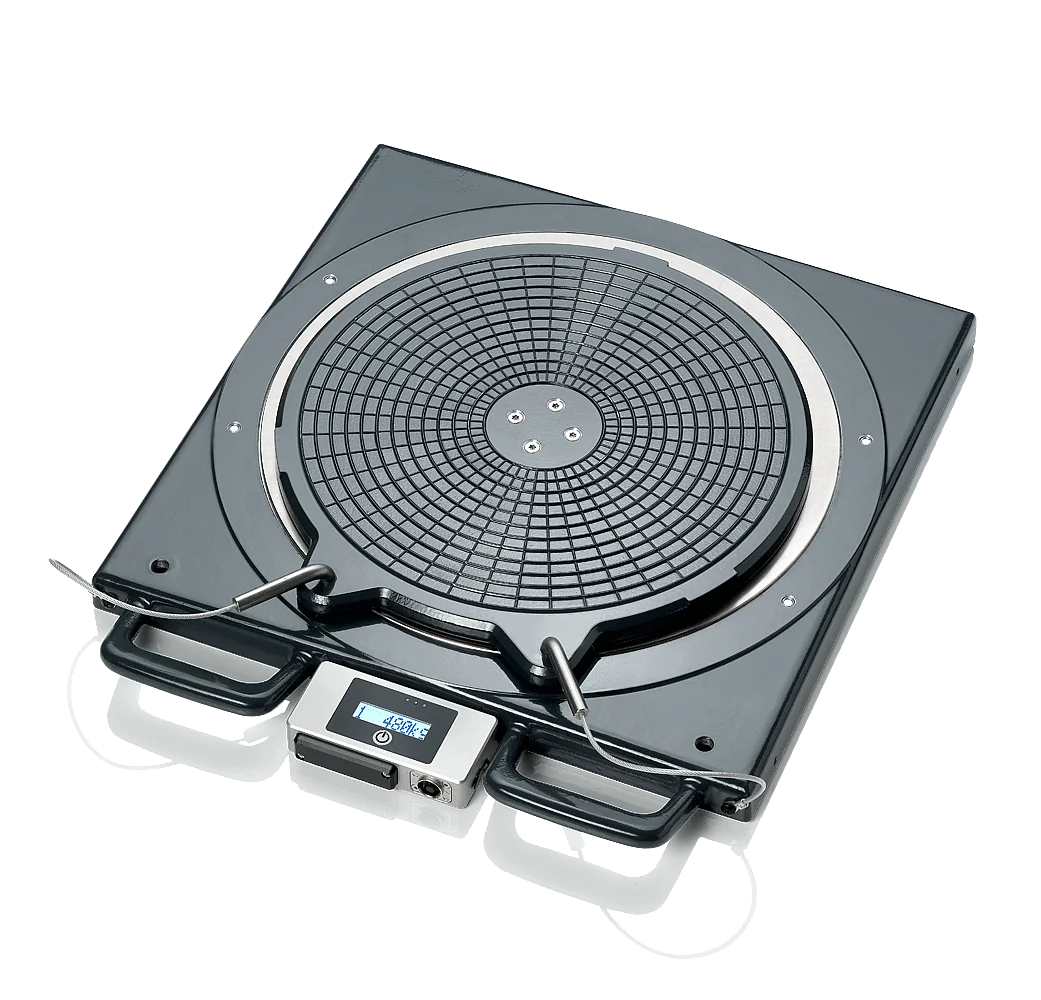

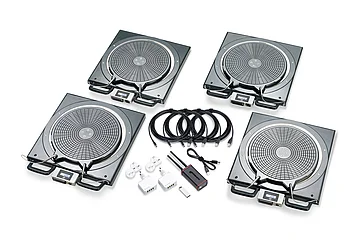

The electronic corner weight scales carry out high-precision weight distribution on the vehicle. In connection with the wheel alignment, the chassis can be optimally adjusted. This provides maximum levels of grip and better overall handling of the vehicle.

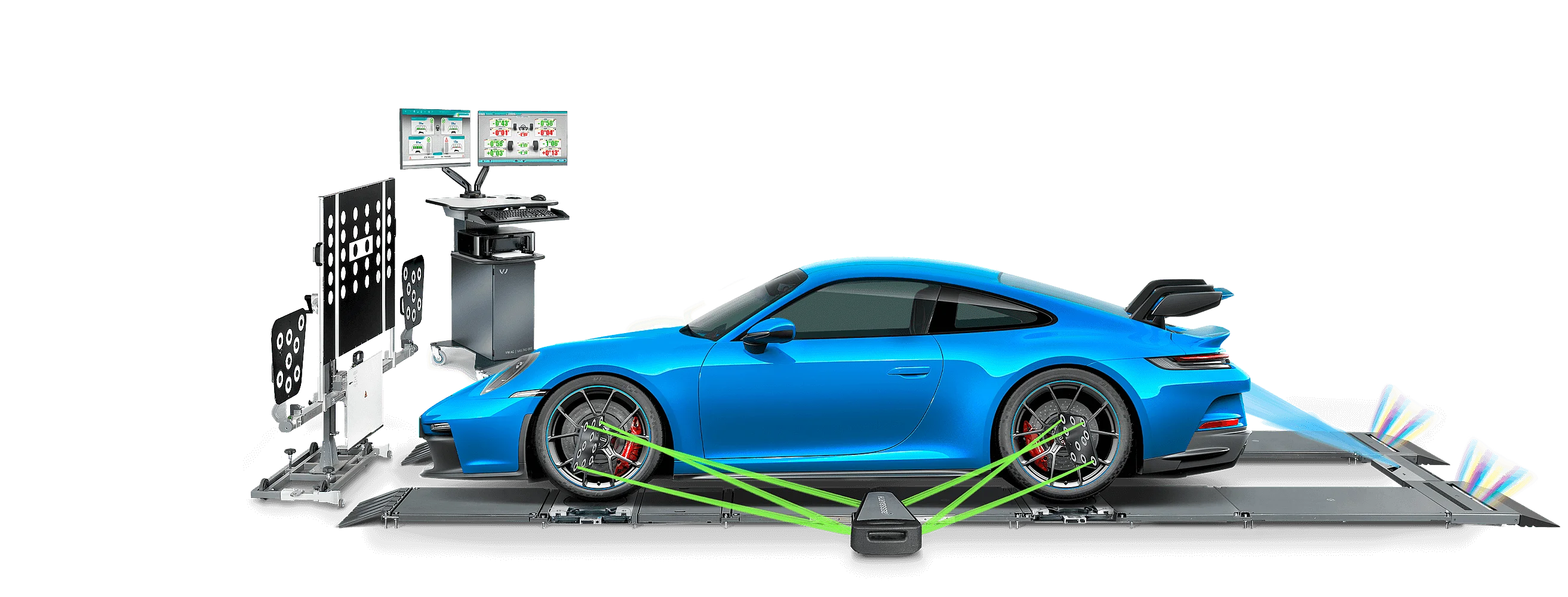

By the help of the corner weight scales the static weight distribution as well as the center of gravity optimization are integrated into to wheel alignment process. This not only ensures a stable and levelled working surface for optimal measurement results but also allows the immediate re-adjustment of camber, caster, and toe settings after the change in ride height. In motorsports the RaceScales ensure best race settings of the vehicle for faster lap times.
All corner weight scales are factory calibrated through ISO-certified measurement laboratory!
Listed as official Porsche accessory: VAS 701 009

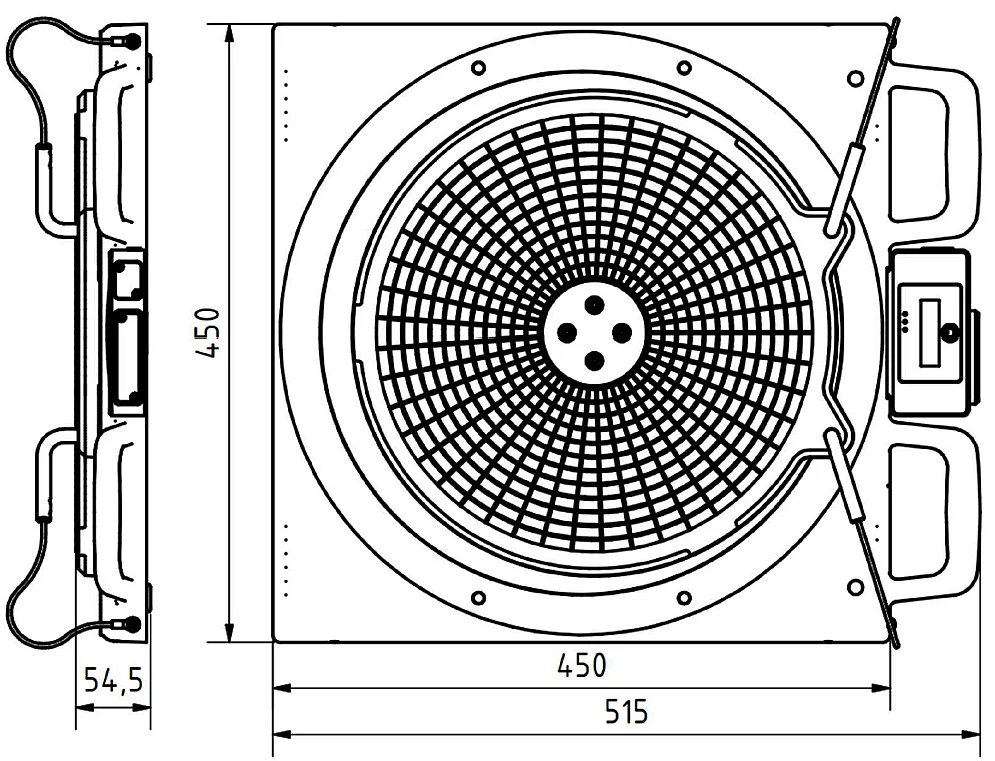

| Weight | 19 kg |
|---|---|
| Length | 450 mm |
| Height | 54 mm |
| Packaging unit | 1 Pallet(s) |
| Operating temperature | 0 - 40 °C |
| Turntable capacity | 1000 kg |
| Data transmission type | 920MHz Cordless |
| Width | 515 mm |
| Accumulator power (electric charge) | 5.92 Wh |
| Set-up width | 450 mm |
| Set-up length | 450 mm |
| Frequency | 920 MHz |
| Storage temperature | -10 - 60 °C |
| Country of Origin, customs | DE |
| Number of languages (software) | 14 |
| Load capacity per turntable | 1000 kg |
| Weight | 19 kg |
|---|---|
| Length | 450 mm |
| Height | 54 mm |
| Packaging unit | 1 Pallet(s) |
| Operating temperature | 0 - 40 °C |
| Turntable capacity | 1000 kg |
| Data transmission type | 920MHz Cordless |
| Width | 515 mm |
| Accumulator power (electric charge) | 5.92 Wh |
| Set-up width | 450 mm |
|---|---|
| Set-up length | 450 mm |
| Frequency | 920 MHz |
| Storage temperature | -10 - 60 °C |
| Country of Origin, customs | DE |
| Number of languages (software) | 14 |
| Load capacity per turntable | 1000 kg |
Dimensions:
Movable flight case with hinges and handles for one set of RaceScales incl. accessories. 731 x 511 x 757mm
