- Levelable rail system for above and inground installation)
- Length: 3 meters
- Complies with the latest requirements placed on test areas in workshops: meets the requirements of vehicle manufacturers as well as the requirements of the general-inspection headlight-test directive
- Height differences of up to 30 mm can be compensated together with the headlight aiming device trolley
- Long lifetime
- High-quality, robust processing
- Precisely guided steel wheels: for precise measurements and adjustments, a one-time alignment with the vehicle is sufficient (time saving!)
- Steel wheels are included in scope of delivery
- Optional expandable to 4.5 m (see accessories list)
Headlight testing system MLD 815 with Ford homologation
- Homologated headlight testing system for Ford workshops
- Alignment to the vehicle center line according Ford requirements: with laser module and rear target post
- Including developed software function for glare-free high beam system (ILS / GFHB) built into Ford models
Alignment kit for alignment on the vehicle center line (Ford requirement)
- Exact alignment to the vehicle center line: with laser module and rear target post
- Designed for Ford vehicles with glare-free high beam, usable for all manufacturers vehicles to increase the precision
- Attached to the rear of the vehicle using magnets or suction cups
- Fine adjustment for exact positioning to the vehicle center
- High quality, highly visible, green vertical laser
- Low laser class - 1M
Note: Rail system is mandatory to use this alignment solution (Ford requirement)
German Road Traffic Type-Approval Law StVZO § 29 general-inspection headlight-test directive: MLD 815 Ford can be calibrated according to the legal requirements
- TÜV certificate in line with StVZO § 50 - TPN 10010 1161: MLD 815 Ford is TÜV-certified by prototype technical release examination in accordance with the directives for testing headlight adjustment/test equipment (German Road Traffic Type-Approval Law StVZO §50 paragraph 5).
- The vehicle center line alignment with pendulum is considered in the type approval certificate.
- The alignment (leveling) of the MLD 815 Ford on the testing bay corresponds to the latest requirements
- Two-dimensional spirit level for horizontal leveling of the optical box
- Levelable 3-Wheel base system fitting for all common rail systems
- Levelable rail system for above and inground installation (3 m) as optional available accessory
Digital headlight testing with MLD 815: intelligent, fast and precise
- Cross- and alignment laser for precise positioning
- For all light sources (Xenon, Bi-Xenon, LED, Bi-LED, Halogen) and glare-free high-beam systems (Dynamic Light Assist - DLA, Matrix, ILS Ford)
- All types of vehicles (passenger cars, trucks, motorcycles)
- All types of headlights (main headlights, fog lamps, auxiliary lamps)
- CMOS camera for real-time digital image processing
- Built-in printer
- Measurement results in real time
- Comparison between measured and limit values and unambiguous red/green evaluation
- Precise definition of the cut-off line without disrupting blue fringe
- Digital LCD colour display (5.7") with 262,000 colours
- Touch-screen function (operation with gloves is possible)
- Intuitive and simple user guidance
- Visual and acoustic signals support the measurement procedure
- Menu featuring 7 languages
- Operating panel can be rotated by 180° for different areas of application (e.g. for general inspections or for the adjustment at the workshop)
- Independent operation thanks to battery - Storage battery Alignment laser 3 x Mignon AA 1.5 V - Storage battery Alignment laser vertical 4 x Mignon AA 1.5 V
- Measuring height (optical center): 24 - 145 cm
- Measured values: Horizontal and vertical deviation (pitch angle), intensity, roll angle, yaw angle
- Digital precision: +/- 1 cm on a 10-meter measuring distance

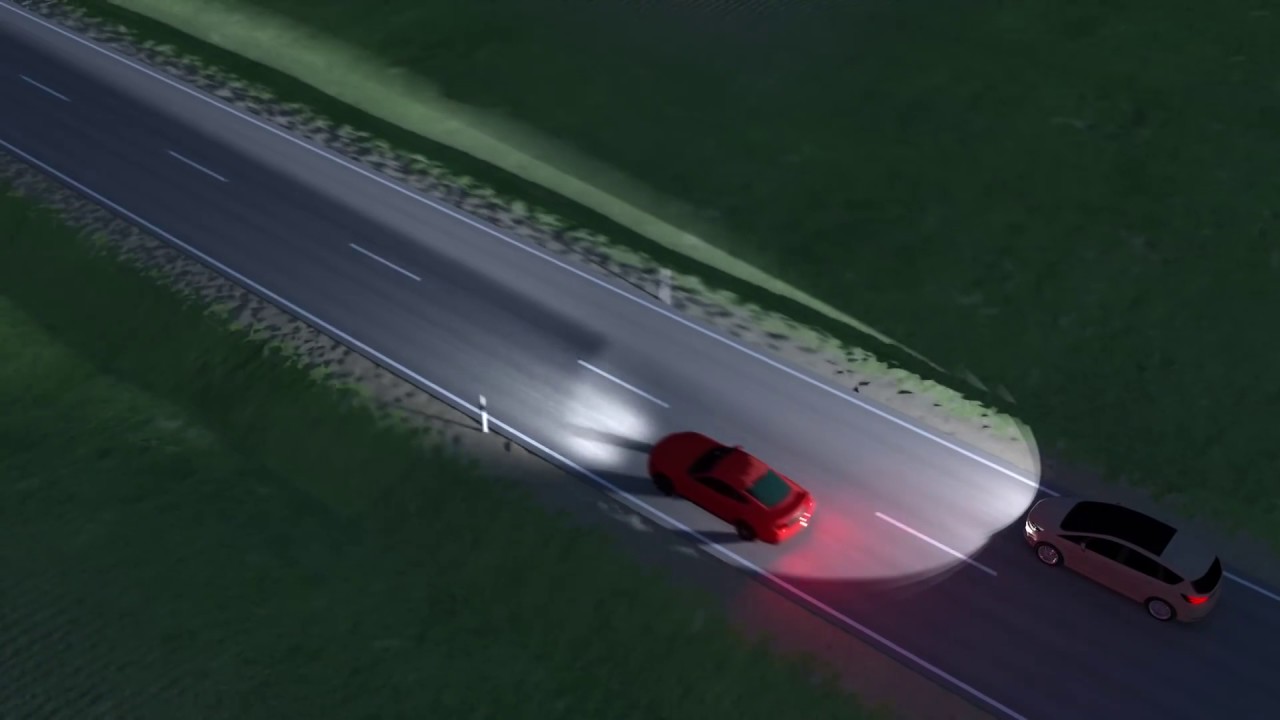

Reliable check and adjustment of permanent high beams (e.g. Dynamic Light Assist - DLA, Matrix Beam etc.)
MLD 815 Ford assists the user with intelligent headlamps:
- Mechanical adjustment of the vertical cut-off line (e.g. DLA, ILS)
- Positon of the cut-off line read out by means of the MLD 815 Ford software - with an accuracy level based on angular minutes (e.g. bei Matrix Beam)
Note: To adjust the glare-free high beam, an OBD diagnostic device is also required
Test results via WLAN with quick and aptly arranged results on the PC
- Optional: visualization on the workshop computer
- Displaying of the cut-off line on the PC monitor or TFT screen
- Data transfer to PC via WLAN
- User interface simplifies intuitive use
- Database function
- Printing and archiving
- Adjustment of the colour scheme by the user: Light/dark background depending on the lighting conditions
- Workshop Network Connectivity: Supports Bosch Connected Repair, ASA Network Compatibility is guaranteed"
Certificate: CE, TÜV, EMC, FCC, FDA
| Operating temperature | 5 - 45 °C |
|---|---|
| Electrical connection | 100 - 240 V | 50 - 60 Hz |
| Battery voltage (DC) | 12 V |
| Height of light center | 250 - 1500 mm |
| Measuring range lowest stand/highest stand | 600 - -600 mm |
| Light intensity | 0 - 150000 cd |
| Illumination | (1m) 0 - 150000 / (25m) 0 - 240 lx |
| Storage temperature | -25 - 45 °C |
| Version | - Digital |
| Packaging length | 650 mm |
| Packaging width | 1790 mm |
| Packaging height | 700 mm |
| Gross weight | 40 kg |
| Measuring range low beam left/right | 1000 - -1000 mm |
| Measuring range high beam left/right | 1000 - -1000 mm |
| Relative humidity storage | 20 - 80 % |
| Relative humidity, use | 30 - 60 % |
| Radiant power alignment laser | 5 mW |
| Operating voltage alignment laser | 3 - 5 V (DC) |
| Laser class alignment laser | 3R |
| Projection alignment laser | 130° x 0,4 mrad |
| Laser diode alignment laser | 635 nm |
| Laser class cross laser | 3R |
| Projection cross laser | 90° x 0,4 mrad |
| Laser diode cross laser | 635 nm |
| Radiant power cross laser | 5 mW |
| Operating voltage cross laser | 3 - 5 V (DC) |
| Projection alignment laser (vertical) | (P-Assist S5) 130° x 0,4 mrad |
| Laser diode alignment laser (vertical) | (P-Assist S5) 520 +/- 5 nm |
| Laser class alignment laser (vertical) | (P-Assist S5) 1M |
| Radiant power alignment laser (vertical) | (P-Assist S5) 10 mW |
| Operating voltage alignment laser (vertical) | (P-Assist S5) 4,5 - 6 V (DC) |
| Operating temperature | 5 - 45 °C |
|---|---|
| Electrical connection | 100 - 240 V | 50 - 60 Hz |
| Battery voltage (DC) | 12 V |
| Height of light center | 250 - 1500 mm |
| Measuring range lowest stand/highest stand | 600 - -600 mm |
| Light intensity | 0 - 150000 cd |
| Illumination | (1m) 0 - 150000 / (25m) 0 - 240 lx |
| Storage temperature | -25 - 45 °C |
| Version | - Digital |
| Packaging length | 650 mm |
| Packaging width | 1790 mm |
| Packaging height | 700 mm |
| Gross weight | 40 kg |
| Measuring range low beam left/right | 1000 - -1000 mm |
| Measuring range high beam left/right | 1000 - -1000 mm |
| Relative humidity storage | 20 - 80 % |
| Relative humidity, use | 30 - 60 % |
| Radiant power alignment laser | 5 mW |
|---|---|
| Operating voltage alignment laser | 3 - 5 V (DC) |
| Laser class alignment laser | 3R |
| Projection alignment laser | 130° x 0,4 mrad |
| Laser diode alignment laser | 635 nm |
| Laser class cross laser | 3R |
| Projection cross laser | 90° x 0,4 mrad |
| Laser diode cross laser | 635 nm |
| Radiant power cross laser | 5 mW |
| Operating voltage cross laser | 3 - 5 V (DC) |
| Projection alignment laser (vertical) | (P-Assist S5) 130° x 0,4 mrad |
| Laser diode alignment laser (vertical) | (P-Assist S5) 520 +/- 5 nm |
| Laser class alignment laser (vertical) | (P-Assist S5) 1M |
| Radiant power alignment laser (vertical) | (P-Assist S5) 10 mW |
| Operating voltage alignment laser (vertical) | (P-Assist S5) 4,5 - 6 V (DC) |
- Rail kit 3 m1 692 105 0801 692 105 080
- Extension kit for rail kit | 1.5 m1 692 105 1121 692 105 112
Extension kit for rail base kit (3 m)
- Height-messuring sensor | for MLD 6xx and 8xx 1 692 105 0661 692 105 066
- Automatic detection of the headlight installation height
- Automatic display of the measured height value on the device display
- Installation height value is shown in the report
Note: for MLD 6xx and 8xx only
- Cover for headlight testing devices1 692 105 0791 692 105 079
- Dust protection
- Protection against direct sunlight
- PC Software Icperform - Headlight1 692 105 1451 692 105 145
- Displaying of the cut-off line on the PC monitor or TFT screen
- Data transfer to PC via Bluetooth®
- User interface simplifies intuitive use
- Database function
- Printing and archiving
- Adjustment of the colour scheme by the user: Light/dark background depending on the lighting conditions
- Workshop Network Connectivity: Supports Bosch Connected Repair, ASA Network Compatibility is guaranteed
- Matrix 2 Upgrade | for MLD 8151 692 105 2691 692 105 269
- Unlocks the Matrix 2 headlight adjustment option
- Ford Matrix | for MLD 8151 692 105 2881 692 105 288
Unlocks the adjustment of Matrix headlights for Ford vehicles on MLD 815
- Skoda Function | for MLD 8151 692 105 2891 692 105 289
Unlocks the Matrix and Kink (L-Shape) headlight option for Skoda vehicles on MLD815
