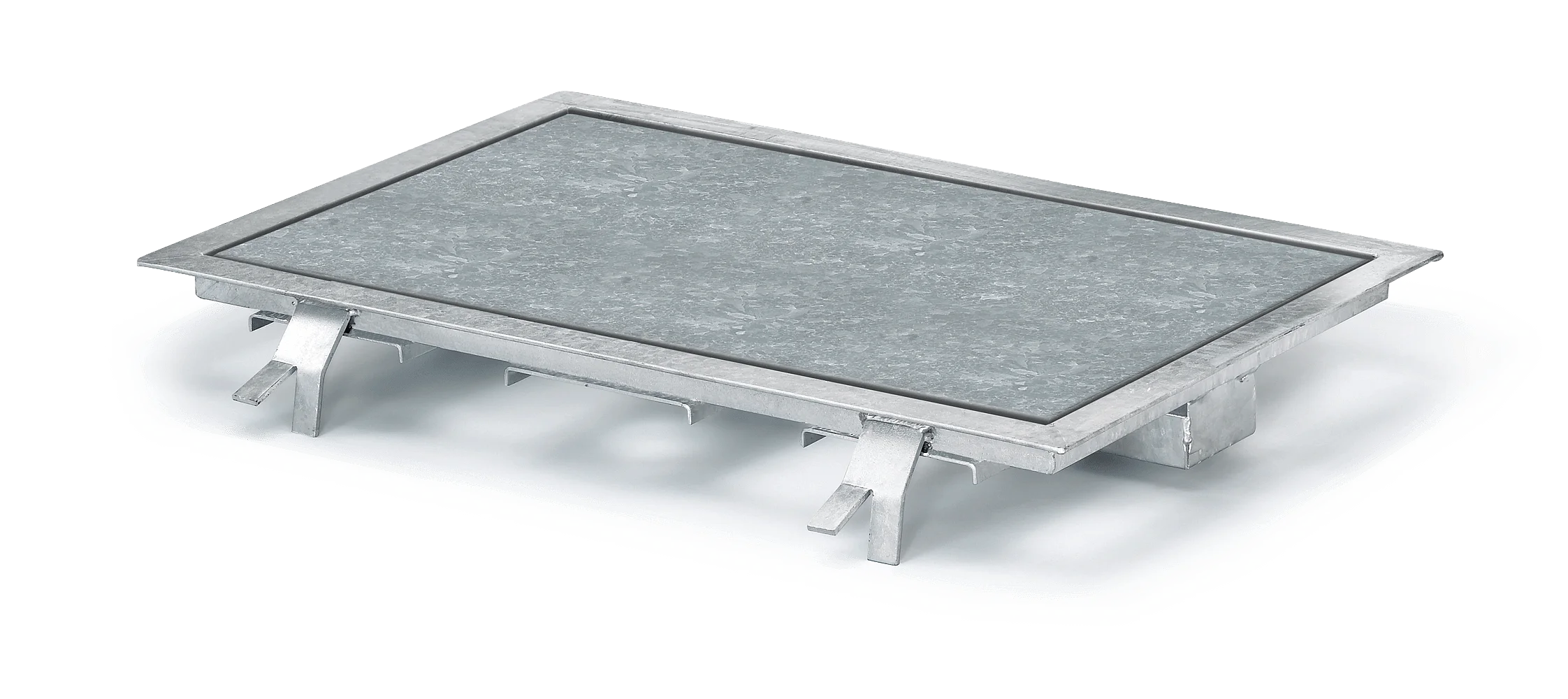

- The ST 600 is a laterally slidable steel plate.
- A precision potentiometer or resistance strain gauge sensor measures the lateral deflection of the side slip tester.
EN I Beissbarth PTI Chile (PRTs) - Best practice in vehicle inspections
- Side slip tester ST 600 incl. mounting set
- Depending on version: - Precision potentiometer inc. cables - Resistance strain gauge sensor incl. cables - Compensation plate incl. mounting set
| Weight | 30 kg |
|---|---|
| Packing | 815 x 675 x 280 mm |
| Protection class | 54 |
| Length | 750 mm |
| Height | 47 mm |
| Operating temperature | -10 - 50 °C |
| Width | 440 mm |
| Max. axle load testable | 2000 kg |
| Measuring range | +/- 20 mm/m |
| Storage temperature | -10 - 50 °C |
| Gross weight | 40 kg |
| Relative humidity max. | 85 % |
| Max. drive-over load | 4000 kg |
| Weight | 30 kg |
|---|---|
| Packing | 815 x 675 x 280 mm |
| Protection class | 54 |
| Length | 750 mm |
| Height | 47 mm |
| Operating temperature | -10 - 50 °C |
| Width | 440 mm |
| Max. axle load testable | 2000 kg |
|---|---|
| Measuring range | +/- 20 mm/m |
| Storage temperature | -10 - 50 °C |
| Gross weight | 40 kg |
| Relative humidity max. | 85 % |
| Max. drive-over load | 4000 kg |

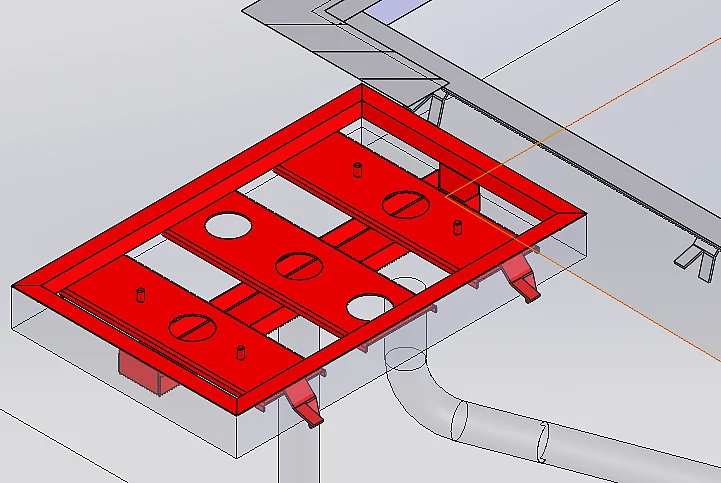

- Installation frame for side slip tester ST 6001 691 632 0001 691 632 000
