- Access to the newest vehicles specs directly from the OEM
- Runtime from activation in the Software Centre: 365 days
- Authorises the licensing of all IAM vehicle databases

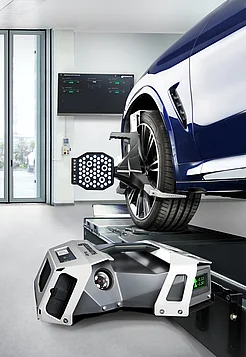

The World’s most innovative Wheel aligner
Q.Lign is our answer to an increasingly digital and fast-paced world: ultra fast, compact, connected
World’s First Web-based wheel aligner
- Compact web-based technology creates more space by replacing the need for trolley with PC
- Stream-to-X: Directly display the software on any TV, PC, laptop or smartphone
- Unleash the full power of connectivity by integrating Q.Lign into your daily workshop processes and systems
Get all the speed you want without compromising on accuracy
- Ultra fast software with optimized workflow of the complete alignment process
- New shortened runout procedure for increased productivity
- High precision 3D camera technology provides real-time values
Full mobility, infinite possibilities
- Completely wireless thanks to high performance Li-Ion batteries
- Installation on any alignment lift type, above and inground
- Runout compensation in any lift height, from zero to top position
- Permanently use the space in front of the lift for headlight testing and ADAS calibration
Work smarter, not harder
- Get values the second the targets are recognized to immediately spot vehicles involved in accidents
- Measure with any target on any wheel position to save time and eliminate user error
- Active lift control: Our recipe for success for straight steering wheels
- Have the values always in sight from under the vehicle with the four OLED screens on the sensor heads
Putting the customer first
- Easy to understand printouts
- Theme-based printouts (e.g. accident report) instead of one size fits all
- Measurement of all common wheel alignment angles, including vehicle dimensions for easy detection of vehicles involved in accidents
- 2 compact Q.Lign sensor heads with OLED displays
- Display module for direct streaming to TV, PC, laptop or tablet
- 2x Li-Ion 99.4Wh batteries
- Tablet
- 4 targets with auto-identification
- Lift adaption
- Duo battery charger
- Steering wheel lock and brake lock
- Key Card 365 for international vehicle specs
Please note: Not a complete wheel aligner. Turnplates and wheel clamps need to be provided separately.
| Weight | 39 kg |
|---|---|
| Packaging unit | 1 Pallet(s) |
| Electrical connection | 100 - 230 V | 50 - 60 Hz | 1 ph |
| Individual toe front/rear axle | Ja |
| Total toe | Ja |
| Toe-out on turns | Ja |
| Camber front/rear axle | Ja |
| Caster | Ja |
| SAI | Ja |
| Set-back | Ja |
| Thrust angle | Ja |
| Data transmission type | kabellos |
| Measuring system | 3D |
| Accumulator power (electric charge) | 99 Wh |
| Run-out compensation | Ja |
| Set-back front axle | Ja |
| Geometric centre line | Ja |
| Packaging length | 860 mm |
| Packaging width | 560 mm |
| Packaging height | 900 mm |
| Gross weight | 50 kg |
| Country of Origin, customs | DE |
| Max. wheel base | 5000 mm |
| Weight | 39 kg |
|---|---|
| Packaging unit | 1 Pallet(s) |
| Electrical connection | 100 - 230 V | 50 - 60 Hz | 1 ph |
| Individual toe front/rear axle | Ja |
| Total toe | Ja |
| Toe-out on turns | Ja |
| Camber front/rear axle | Ja |
| Caster | Ja |
| SAI | Ja |
| Set-back | Ja |
| Thrust angle | Ja |
| Data transmission type | kabellos |
| Measuring system | 3D |
|---|---|
| Accumulator power (electric charge) | 99 Wh |
| Run-out compensation | Ja |
| Set-back front axle | Ja |
| Geometric centre line | Ja |
| Packaging length | 860 mm |
| Packaging width | 560 mm |
| Packaging height | 900 mm |
| Gross weight | 50 kg |
| Country of Origin, customs | DE |
| Max. wheel base | 5000 mm |
- Vehicle database update Q.Lign | Key Card 3651 690 002 0191 690 002 019
- ADAS target boards | for Q.Lign1 690 200 0131 690 200 013
For ADAS calibration in combination with Q.Lign. Target boards can be permanently installed on the ADAS calibration tool.
Scope of delivery:- 2x ADAS target boards (Coding ID #5 and #6)
- 2x target covers
Compatible with BBFAS1000 and most third-party ADAS calibration tool solutions.
- Power connection cable 10 m1 690 203 0251 690 203 025
- Power connection cable 15 m1 690 203 0411 690 203 041
- Duo-battery charging station for Q.Lign | incl. accessories1 690 201 0691 690 201 069
- Battery for Q.Lign | Li-Ion | 99 Wh1 690 203 0531 690 203 053
- Power supply for Q.Lign Accessories | 19 V RRC1 693 770 6481 693 770 648
For battery charging station and emergency power supply box of Q.Lign
- Emergency power box for Q.Lign1 690 201 0301 690 201 030
- Power supply of sensor heads in case of battery failure
- Mobile use without fixed installation
- Connection to sensor heads via 10 m (1690203025) or 15 m cable (1690203041)
Note: Operation additionally requires the 19 V power supply (1693770648) which is included in the battery-powered Q.Lign scope of deliveries.
- Lift adaptation for Q.Lign1 690 201 0351 690 201 035
2x required for Q.Lign
- Tablet | Android | 10.1"1 693 770 6441 693 770 644
Incl. protection case
- Mouse and keyboard | Wireless1 693 770 6341 693 770 634
- Wall board for Q.Lign1 690 201 0541 690 201 054
- Printer for Beissbarth trolleys1 693 770 4151 693 770 415
- Trolley with 27"monitor | for Q.Lign1 690 201 0551 690 201 055
Scope of delivery: - Trolley - Monitor arm - 27" monitor
- Adapter set Q.Grip | for Q.Lign | 4 pcs.1 690 101 0101 690 101 010
Q.Grip: The closest you will get to Touchless.
- Mounting of targets in under 5 seconds
- No rim contact, no scratches or damages!
- Instantaneously change between different tyre diameters with our new patented clamping mechanism
- Three arms guarantee safe and precise grip during the complete alignment
- No removal of hubcaps!
- No knob twisting!
- No fixed wheel assignment, position on any wheel!
- Clamping range: 525-835mm / 20.6"-32.8" (wheel diameter)
- Electronic aluminum turntable without connecting cable | Standard1 690 401 0111 690 401 011
- Enables full steering lock on CCD and Touchless aligner
- Very high quality and lifetime in workshop environment
- Standard turntable without connecting cable
- Electronic aluminum turntable without connecting cable | Precision1 690 401 0131 690 401 013
- Enables full steering lock on CCD and Touchless aligner
- Very high quality and lifetime in workshop environment
- Precision turntable without connecting cable
- Steel balls for minimal friction and maximum precision
- Protective rubber cover for aluminum turntable1 690 402 0011 690 402 001
- Additional protection from dirt and liquids
- Connecting cable for electronic turntables1 690 403 0011 690 403 001
- Connecting cable between electronic turntables and sensor head
- Enables full steering lock on CCD and Touchless aligner
- Drive-on ramps for two aluminum turntables1 690 701 0521 690 701 052
- Drive-on ramps for turntables including connecting piece and drive off protection
- Enables rolling compensation on lifts without embedded turntables
- Drive-on ramps for turntables and sliding plates1 690 401 0081 690 401 008
- Set of Drive-on ramps for turntables and sliding plates
- Suitable for lifts without cutouts for turntables or sliding plates, e.g. MOT lifts
- Filling piece for aluminum precision turntable1 690 102 0411 690 102 041
1x Precision filling piece for one precision turntable.
Required quantity per turntable: 2
- Magnetic clamps for wheel bolts | 75mm1 690 701 5081 690 701 508
- Quick and gentle attachment on wheel bolts instead of the rim
- Secure and central hold for ultimate precision
- Suited for 3/4/5/6 hole rims
- Magnetic clamps for wheel bolts | 100mm1 690 701 5211 690 701 521
- Quick and gentle attachment on wheel bolts instead of the rim
- Secure and central hold for ultimate precision
- Suited for 3/4/5/6 hole rims
- Self-centering quick clamp for Porsche1 690 380 0101 690 380 010
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAS 6918
- Not suited for Porsche vehicles with center wheel bolt!
- Self-centering quick clamp for Tesla1 690 380 1611 690 380 161
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Self-centering quick clamp for Ferrari1 690 381 2991 690 381 299
- Attaches to the center hole of the rim
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Used for wheel alignment and radar calibration - Wheel alignment requires 2 sets (4 clamps in total) - Radar calibration requires 1 set (2 clamps in total)
- Central clamp Porsche Carrera GT1 690 301 0021 690 301 002
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAG 6828
- Central clamp Porsche 911 GT3 and Turbo1 690 380 0021 690 380 002
- Special tool for Porsche 911 Turbo since 2009 and Porsche 911 GT3 since 2010
- Quick and secure mounting on the vehicle
- Reduces clamping errors
- Official VW special tool: VAS 6830
- Quick clamp Mercedes-Benz | OEM1 690 801 0021 690 801 002
- Distance pins sit directly on the wheel hub, a runout compensation is therefore not necessary
- Quick and secure mounting on the vehicles
- For ultimate precision
- Only suited for CCD and Q.Lign systems
- For wheel diameters up to 850mm
- For original Mercedes-Benz rims with pin hole pattern 5x125mm and 5x160mm
- Quick clamp BMW | OEM1 690 801 0011 690 801 001
- Distance pins sit directly on the wheel hub, a runout compensation is therefore not necessary
- Quick and secure mounting on the vehicles
- For ultimate precision
- Homologated for BMW
- Only suited for CCD and Q.Lign systems
- Für Raddurchmesser bis 850mm
- For original BMW rims with 4x100mm and 5x120mm pin hole pattern
- Distance bolts for quick clamp Mercedes Benz | 100 mm1 690 801 0071 690 801 007
- For one quick clamp
- Distance bolts for quick clamp BMW | 120 mm1 690 801 0031 690 801 003
- For one quick clamp
- Distance bolts for quick clamp Mercedes Benz and BMW | 125 mm1 690 401 0191 690 401 019
- For one quick clamp
- Multi-Fit wheel clamp with standard claws | 13 - 22" | 4 pcs.1 690 311 1121 690 311 112
- High quality claws for gentle attachment to rims
- Torque control for strong hold without deforming the rim
- Multi-Fit wheel clamp with standard claws | 13 - 22" | 1pc.1 690 311 0891 690 311 089
- High quality claws for gentle attachment to rims
- Torque control for strong hold without deforming the rim
- Set softline claws for 1 x Multi-fit clamp | Softline rims1 690 311 1641 690 311 164
- Set truck claws for 1 x Multi-fit clamp | Truck1 690 311 1151 690 311 115
For convex wheels mounted to a double-bearing hub and dually wheels.
Length: 10cm
- Extension set for Multi-fit clamps | 23 - 28"1 690 311 1131 690 311 113
- Wheel chock set 2 pcs.1 692 000 1561 692 000 156
Scope of delivery:
- 2 x Wheel chock
- Ballast bag 5 kg1 693 740 0011 693 740 001
Used for vehicles that require loading to a specific ride height in order to perform alignment
- Ballast bag 20 kg1 693 740 0031 693 740 003
Used for vehicles that require loading to a specific ride height in order to perform alignment
- Dust cover target board | Q.Lign1 690 202 1551 690 202 155
Scope of delivery: 1x protective cover
- Storage kit | for 4x Q.Grip1 690 801 0481 690 801 048
Can be either mounted to the wall or to the post of the Q.Lign T.41 wheel aligner. The storage kit holds 2x2 Q.Grip clamps. Can be positioned on each side of the vehicle for maximum efficiency.
