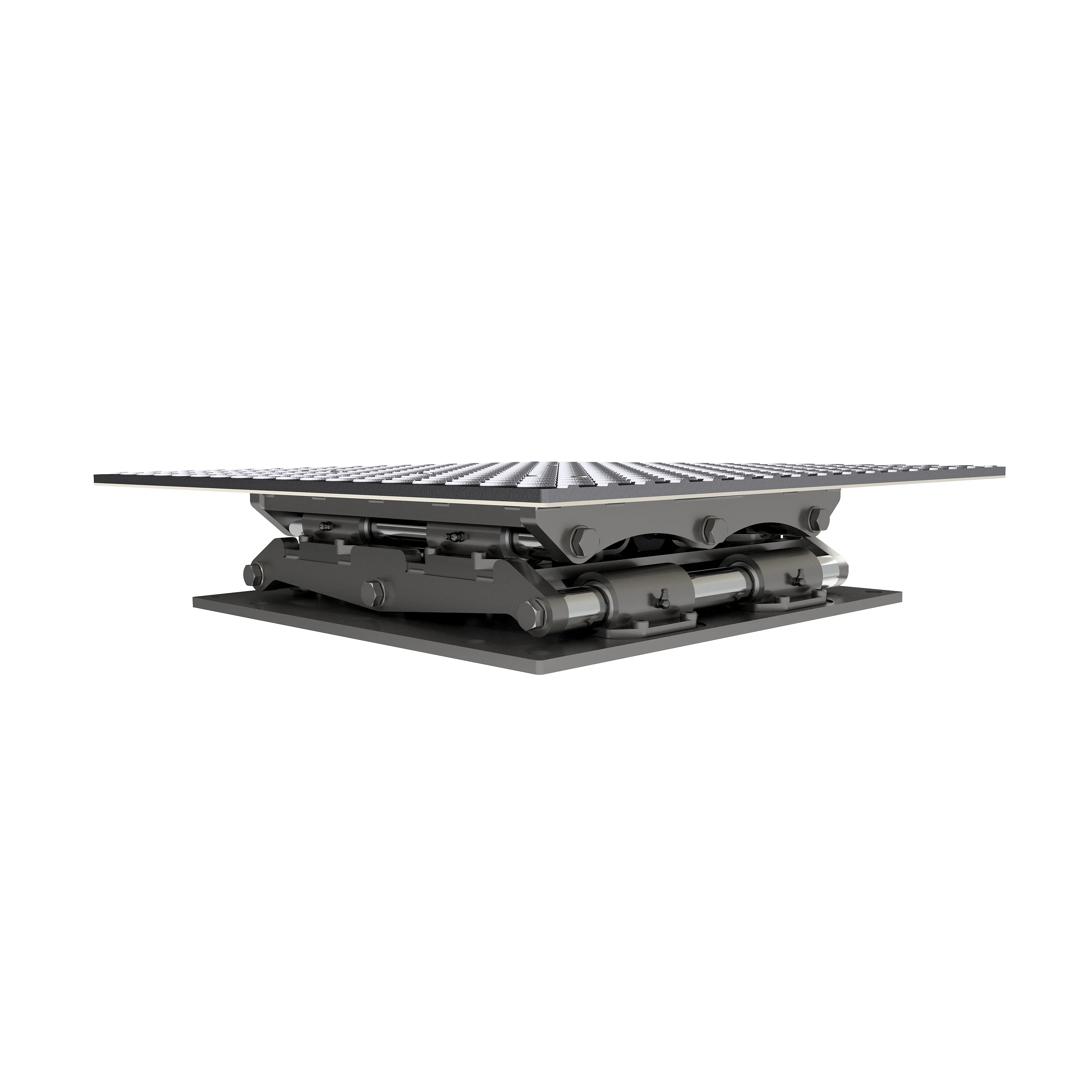

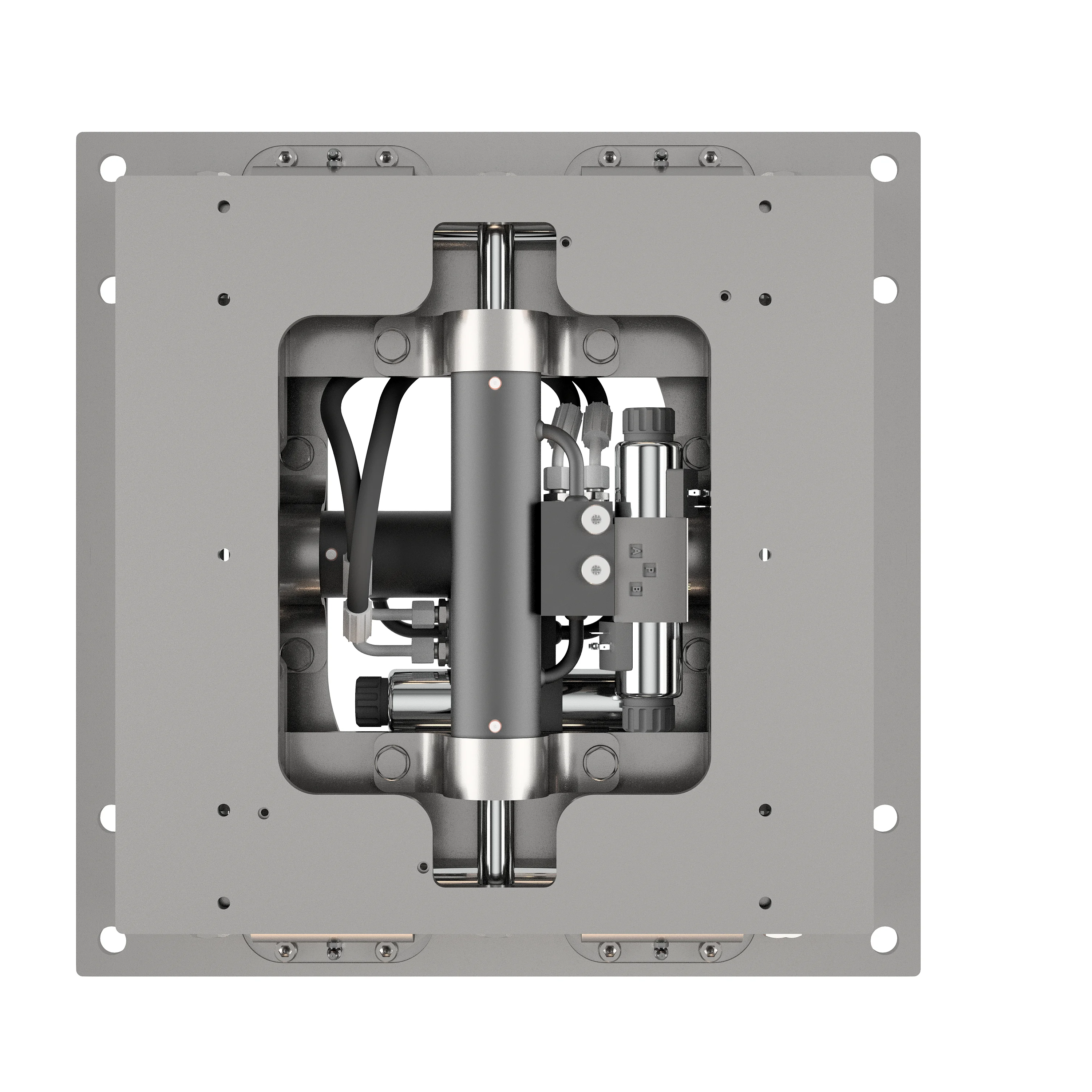

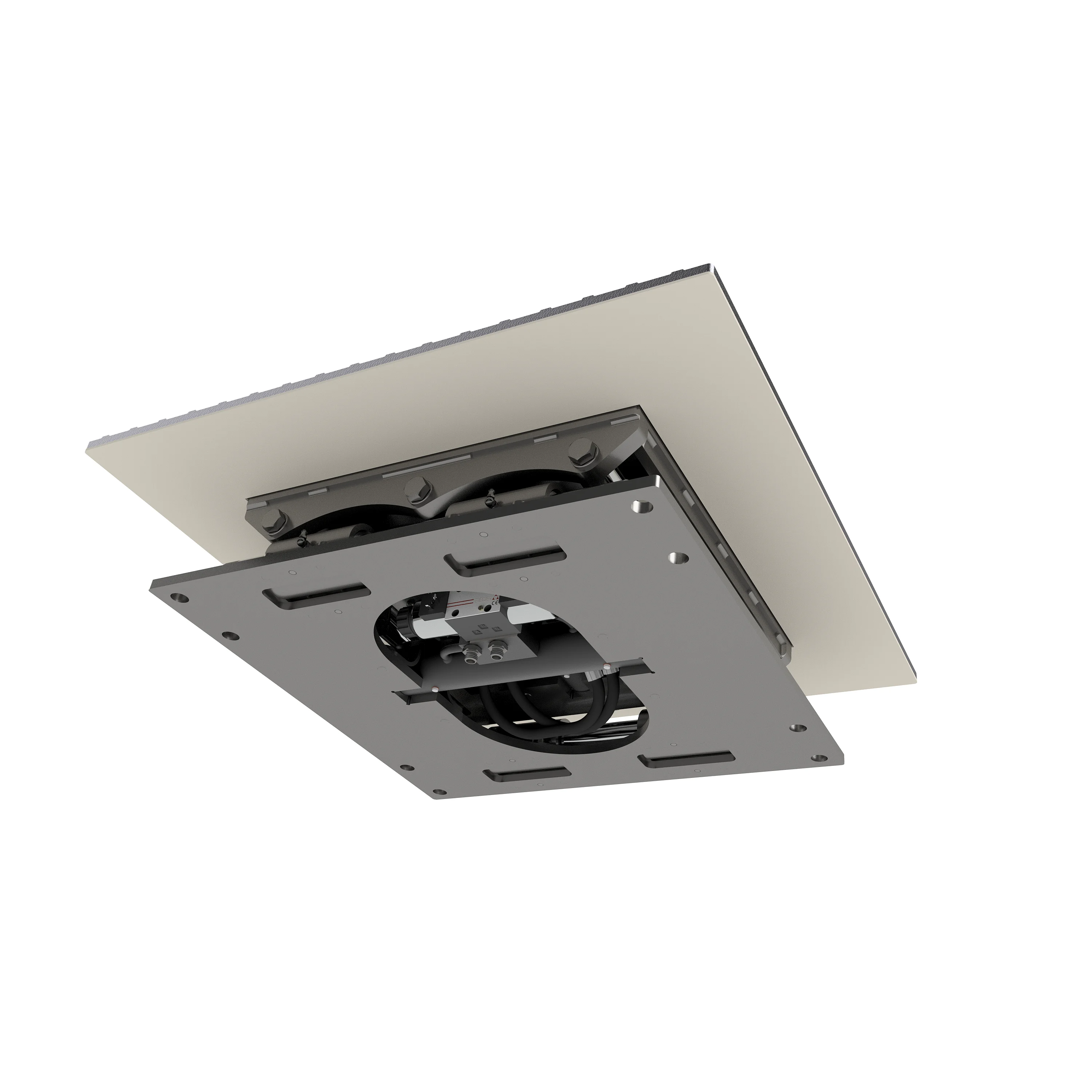

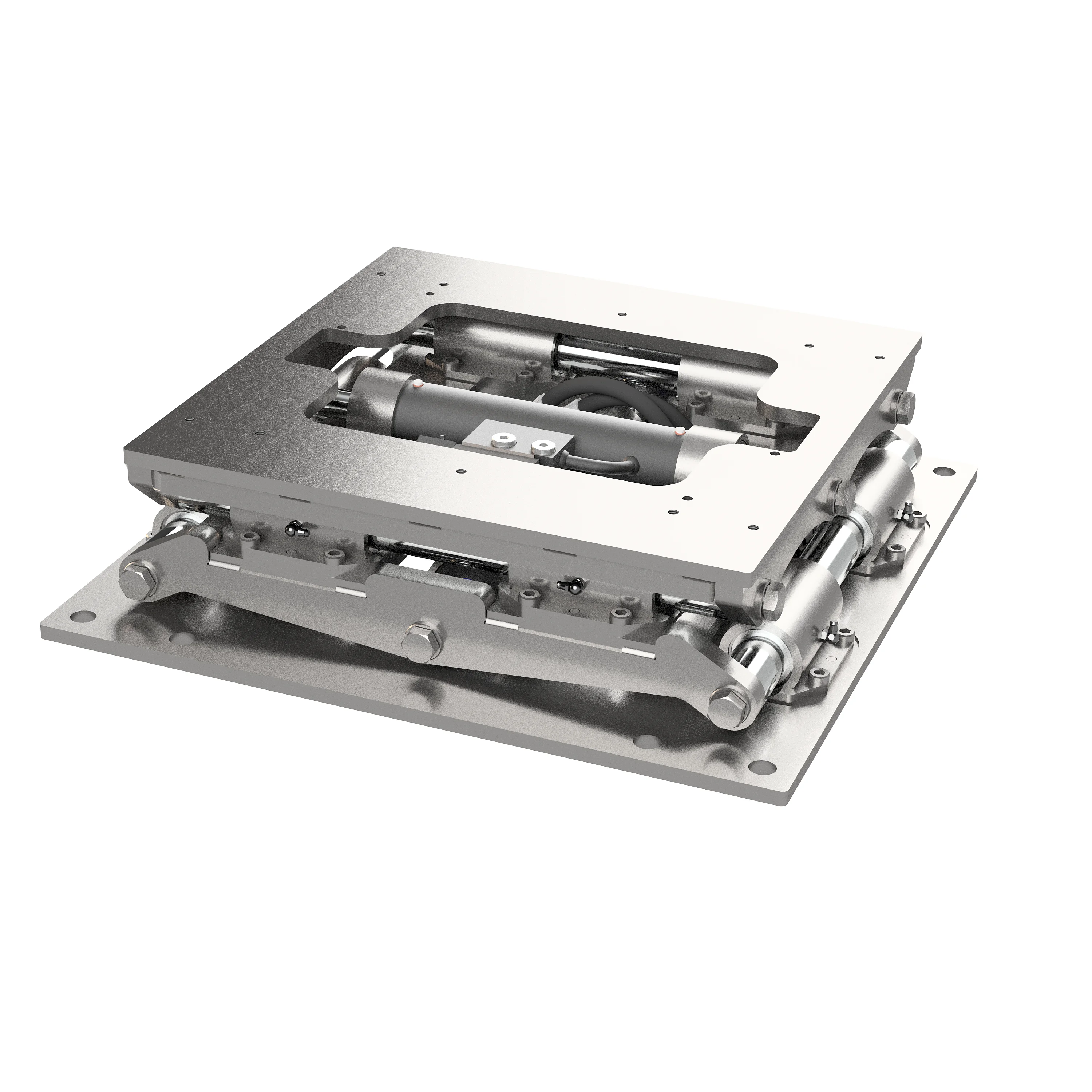

Joint Play Detector Truck 20t - Quick detection of defects and wear on trucks with up to 20t axle load:

• wheel bearings,
• steering parts,
• suspension,
• stabilizers,
• Kingpins and
• trailer couplings

Advantages:

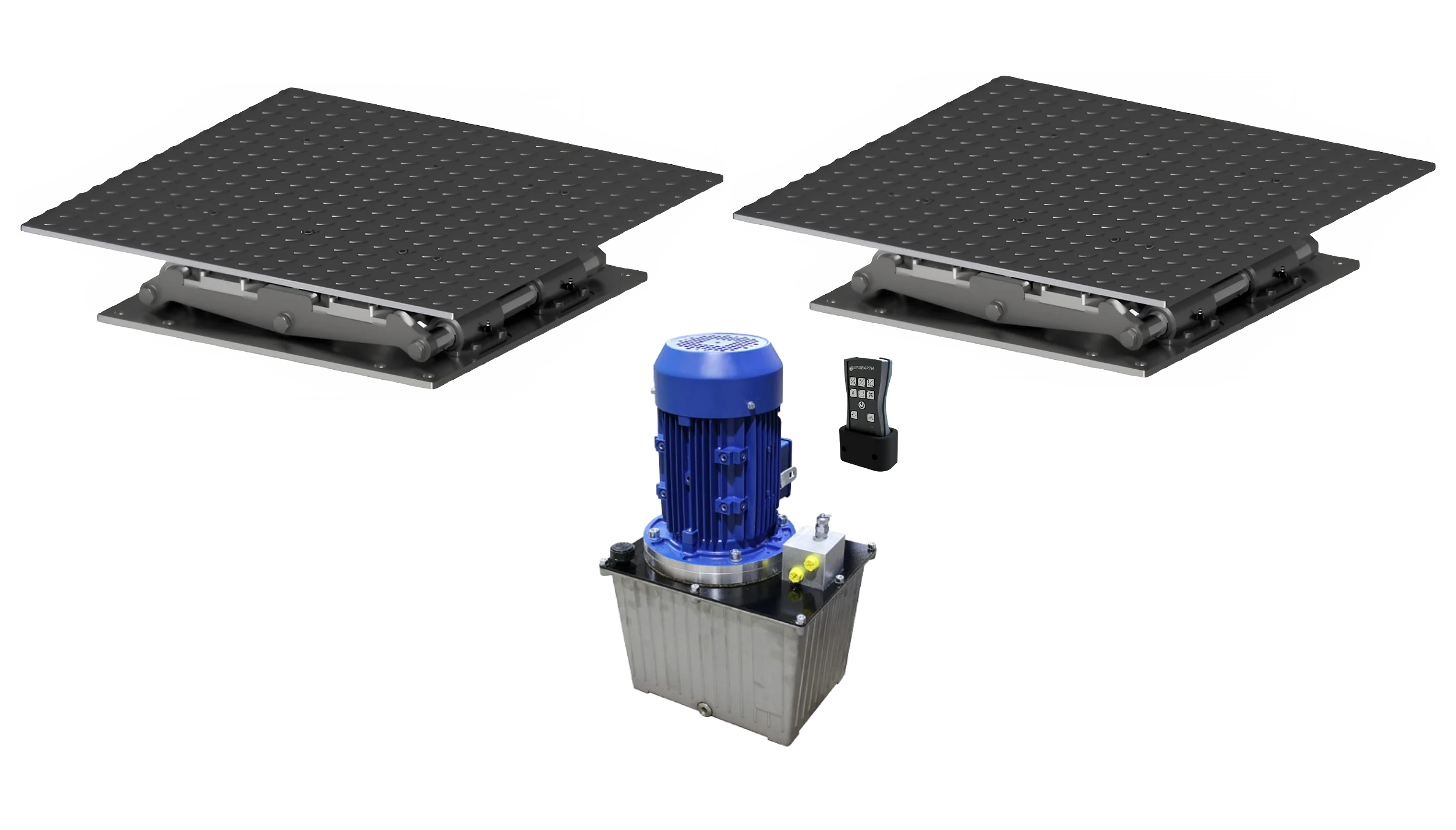

• Smooth movement due to powerful hydraulic unit with high precision for easy and fast positioning
• Low-noise under-oil hydraulic power unit
• Two digital test plates built into the foundation at ground level
• Galvanized test plates with integrated, digital valve control electronics
• Bearing is provided by extra-robust, hard-chrome plated steel shafts
• Extremely robust and low-maintenance design for long service life
• Test plates can be moved in horizontal, vertical, and transversal directions
• Further operating modes including automatic modes (optionally)

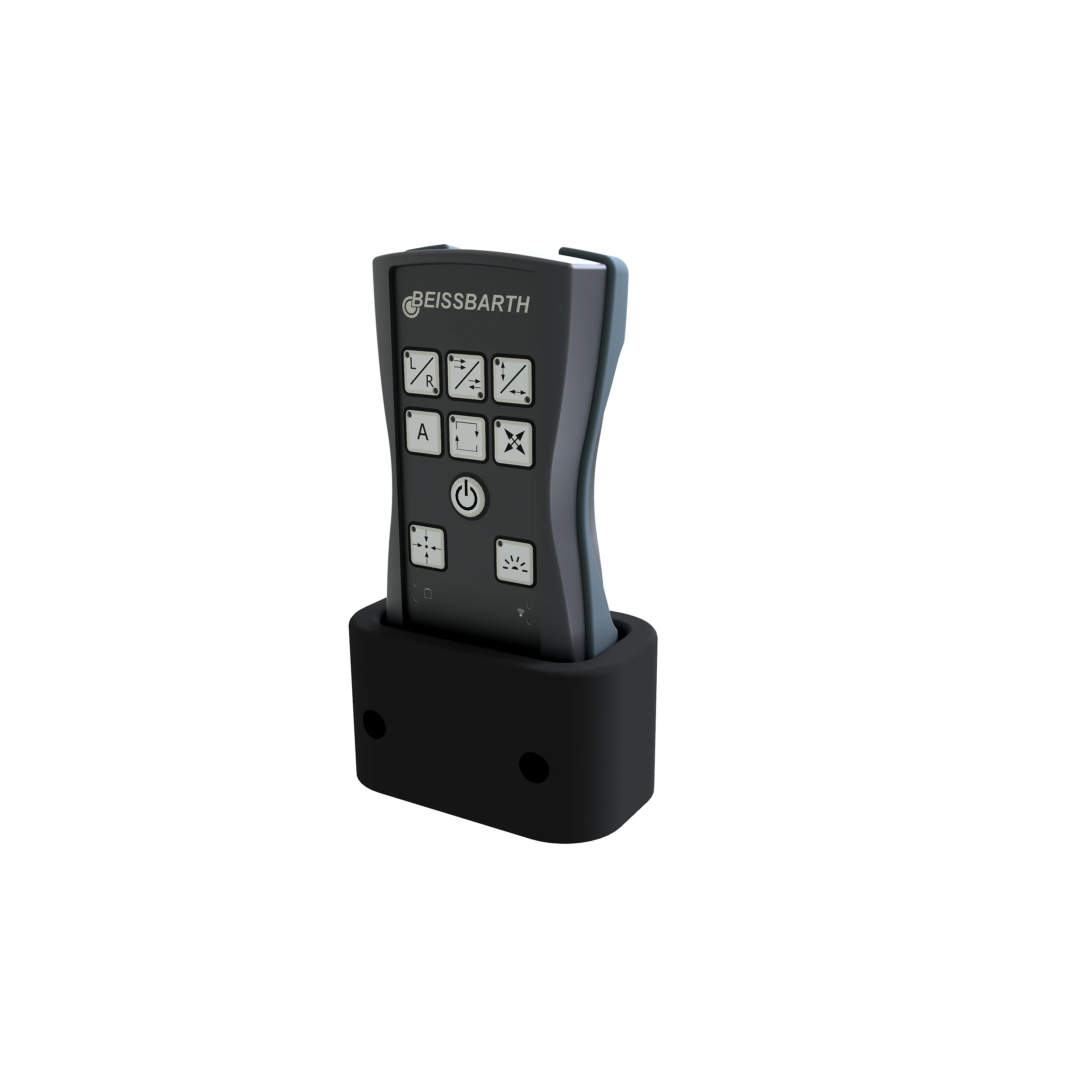

• Wireless radio hand lamp with one-hand operation for movements control
• Wireless radio hand lamp with long-life LEDs and lens for an ideal light beam angle
• Suitable for existing Beissbarth foundation frames (as used for GST-8508)
• Suitable for all popular foundation frames (accessories required)
• Meets the requirements of Directive 2014/45/EU

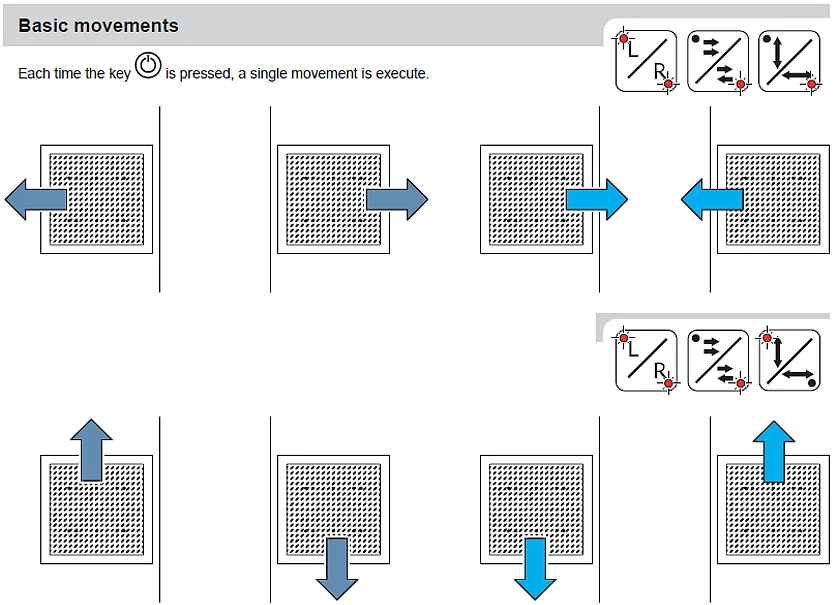

Standard swinging movements:

• Longitudinal and transverse, opposite directions

Optional swinging movements upgrades:

• Longitudinal and transverse, same direction (1691853206)
• Automatic longitudinal and transverse, same and opposite directions (1691853203)
• Automatic circular (1691853204)
• Automatic diagonal (1691853205)
• Single wheel, left / right (1691853208)
• Automatic center (1691853207)
• All movements (1691851204)
