- The geometry of the axle to be tested is displaced by moving the test plates of the GST 6xx. This makes it possible to detect impermissible play at joints and wheel bearings or to localise cracks at stub axles for example.
- The GST 651 is only to be used for the inspection of double-track vehicles with a maximum axle load of 4000 kg.
- Remote control over control lamp with control buttons (Ø 60 mm, length 205 mm, incl. Halogen bulb with reflector, GU5,3 / 38°, 12 V / 20 W)

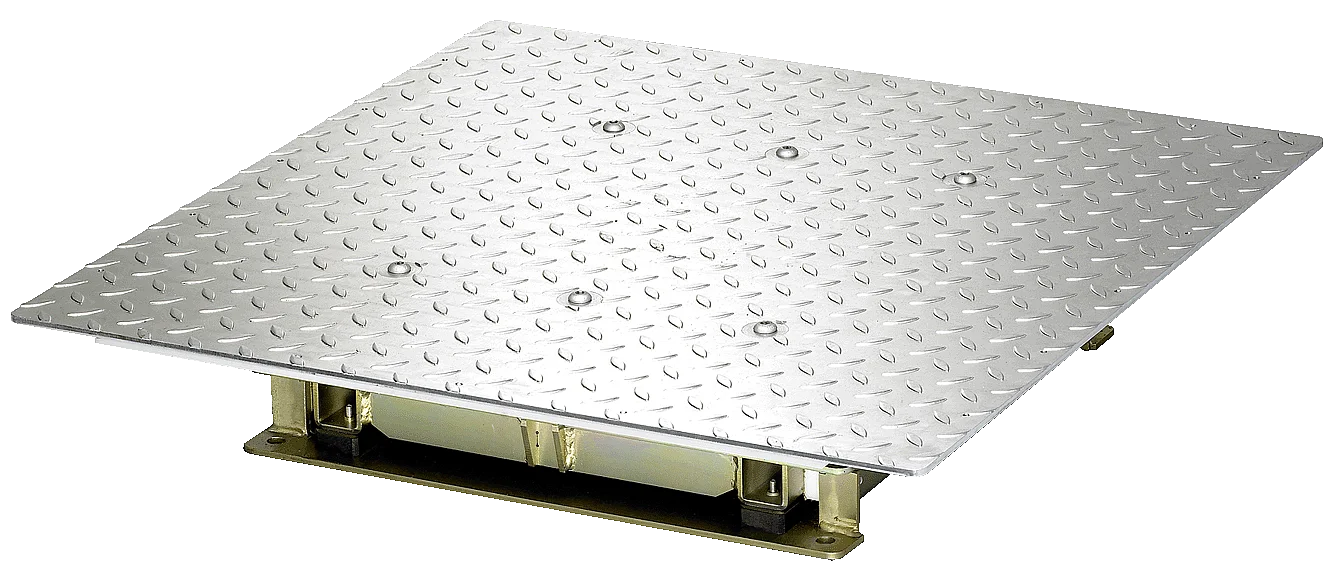

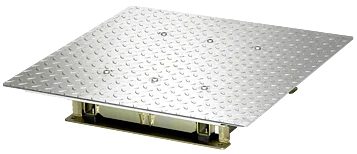

- Test plates (2x)
- Control module incl. control lamp
- Hydraulic unit
- Hydraulic line fitting set
- Fitting set
- Hydraulic fluid (Type of fluid DIN 51524 VG 22)
| Weight | 228 kg |
|---|---|
| Fuse protection | 16 A |
| Electrical connection | - 230 V | 50 Hz |
| Max. axle load testable | 4000 kg |
| Test speed | 75 mm/s |
| Control voltage | 12 V (DC) |
| Bedienelemente | - Control module and control unit |
| Remote control | - Standard |
| Supply lead | 4 x 2,5 mm² |
| Lifting device, max. stroke | 40 mm |
| Test plate length | 730 mm |
| Test plate width | 730 mm |
| Test plate weight | 70 kg |
| Lifting device hydraulic power unit pump rating | 3,2 l/min |
| Lifting device hydraulic power unit operating pressure | 120 bar |
| Lifting device hydraulic power unit motor rating | 1,1 kW |
| Test plate height | 130 mm |
| Packaging length | 1145 mm |
| Packaging width | 820 mm |
| Packaging height | 500 mm |
| Gross weight | 250 kg |
| Cable length to the control unit | 5 m |
| Bewegung der Prüfplatte | 80 mm |
| Phases | 3 |
| Hydraulic oil quantity | 18 l |
| Min. operating temperature | -10 °C |
| Max. operating temperature | +60 °C |
| Relative humidity max. | 85 % |
| Max. drive-over load | 4000 kg |
| Min. storage temperature | -25 °C |
| Max. storage temperature | 80 °C |
| Thrust per cylinder | 12000 N |
| Lifting device hydraulic power unit motor speed | 1410 rpm |
| Control module dimensions (W x D x H) | 360 x 150 x 200 mm |
| Weight | 228 kg |
|---|---|
| Fuse protection | 16 A |
| Electrical connection | - 230 V | 50 Hz |
| Max. axle load testable | 4000 kg |
| Test speed | 75 mm/s |
| Control voltage | 12 V (DC) |
| Bedienelemente | - Control module and control unit |
| Remote control | - Standard |
| Supply lead | 4 x 2,5 mm² |
| Lifting device, max. stroke | 40 mm |
| Test plate length | 730 mm |
| Test plate width | 730 mm |
| Test plate weight | 70 kg |
| Lifting device hydraulic power unit pump rating | 3,2 l/min |
| Lifting device hydraulic power unit operating pressure | 120 bar |
| Lifting device hydraulic power unit motor rating | 1,1 kW |
| Test plate height | 130 mm |
| Packaging length | 1145 mm |
| Packaging width | 820 mm |
|---|---|
| Packaging height | 500 mm |
| Gross weight | 250 kg |
| Cable length to the control unit | 5 m |
| Bewegung der Prüfplatte | 80 mm |
| Phases | 3 |
| Hydraulic oil quantity | 18 l |
| Min. operating temperature | -10 °C |
| Max. operating temperature | +60 °C |
| Relative humidity max. | 85 % |
| Max. drive-over load | 4000 kg |
| Min. storage temperature | -25 °C |
| Max. storage temperature | 80 °C |
| Thrust per cylinder | 12000 N |
| Lifting device hydraulic power unit motor speed | 1410 rpm |
| Control module dimensions (W x D x H) | 360 x 150 x 200 mm |
- Installation frame for play detector GST 6511 691 651 0011 691 651 001
