Beissbarth

Q.DAS Pro

| ADAS Calibration after wheel alignments

8 900 380 012

Without wheel aligner Target Shop Q.DAS Q.mApp Software

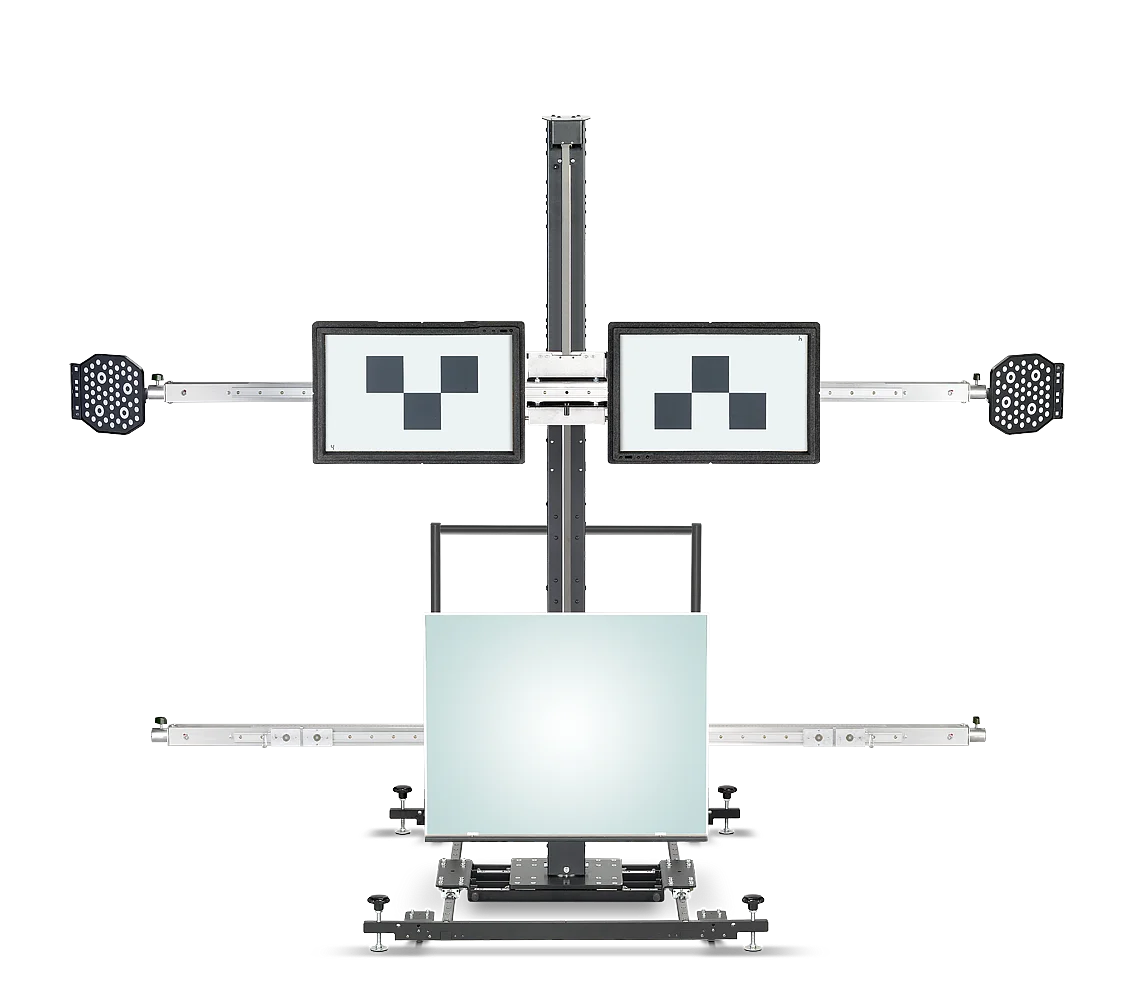

Q.DAS: OEM-compliant ADAS calibration in combination with wheel alignment

Q.DAS is a modular solution for the calibration of forward-facing, safety-relevant radar, camera and LIDAR systems.
Configure your system depending on the volume, budget and available space.

Q.DAS Pro:

  • Safety-relevant driver assistance systems: Radar and camera
  • Vehicle class: Cars and light commercial vehicles
  • Calibration volume in the workshop: high
  • Height adjustment: Motorized up to 2050 mm
  • Works with all camera calibration targets: Yes
  • Supports eTargets: Yes
  • Distance adjustment without re-leveling: 900 mm
  • Center offset adjustment without re-leveling: 200 mm

Advantages of the Q.DAS system:

1. Digital instead of analog:

  • Camera-based positioning via live display
  • No Plumb Bobs or measuring tapes
  • Full control over entire calibration
  • Direct specs instead of manual value transfer*

2. Wheel alignment and ADAS calibration as one process

  • No retooling
  • No moving of measuring devices
  • Permanently ready for use
  • Guided instructions for setup and positioning
  • Automatic compensation of different installation heights
  • Meets highest accuracy requirements of OEMs

3. Modular calibration solution for every workshop

  • Free choice of calibration targets and radar mirrors
  • Configuration according to calibration volume, budget and space conditions
  • No fixed commitment to only one diagnostic tester
  • Integrated X-Y slider minimizes leveling
  • Motorized height adjustment

Just a few steps to the right system for ADAS calibration

Scope of deliveries:

  • 1x Modular Q.DAS frame, without targets or radar mirrors
  • 1x Q.mApp software (Android) and license for activation (1 year)
  • 1x Digital Bluetooth laser distance gauge

*Costs apply: Requires active Q.mApp license in combination with Q.Lign wheel aligner

Get advice now

Find a dealer now

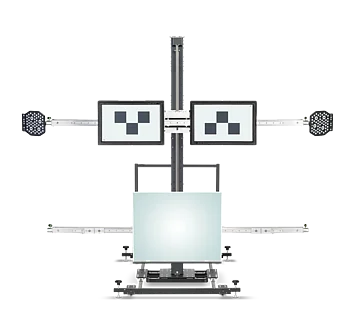

Q.DAS Pro | ADAS Calibration after wheel alignments | 8 900 380 012

Downloads

  • Product data sheet

  • Broschüren

Weight157 kg
Packaging length2350 mm
Packaging width450 mm
Packaging height530 mm
Gross weight187 kg

  • eTarget Kit | Digital 15-in-1 solution8 900 380 011

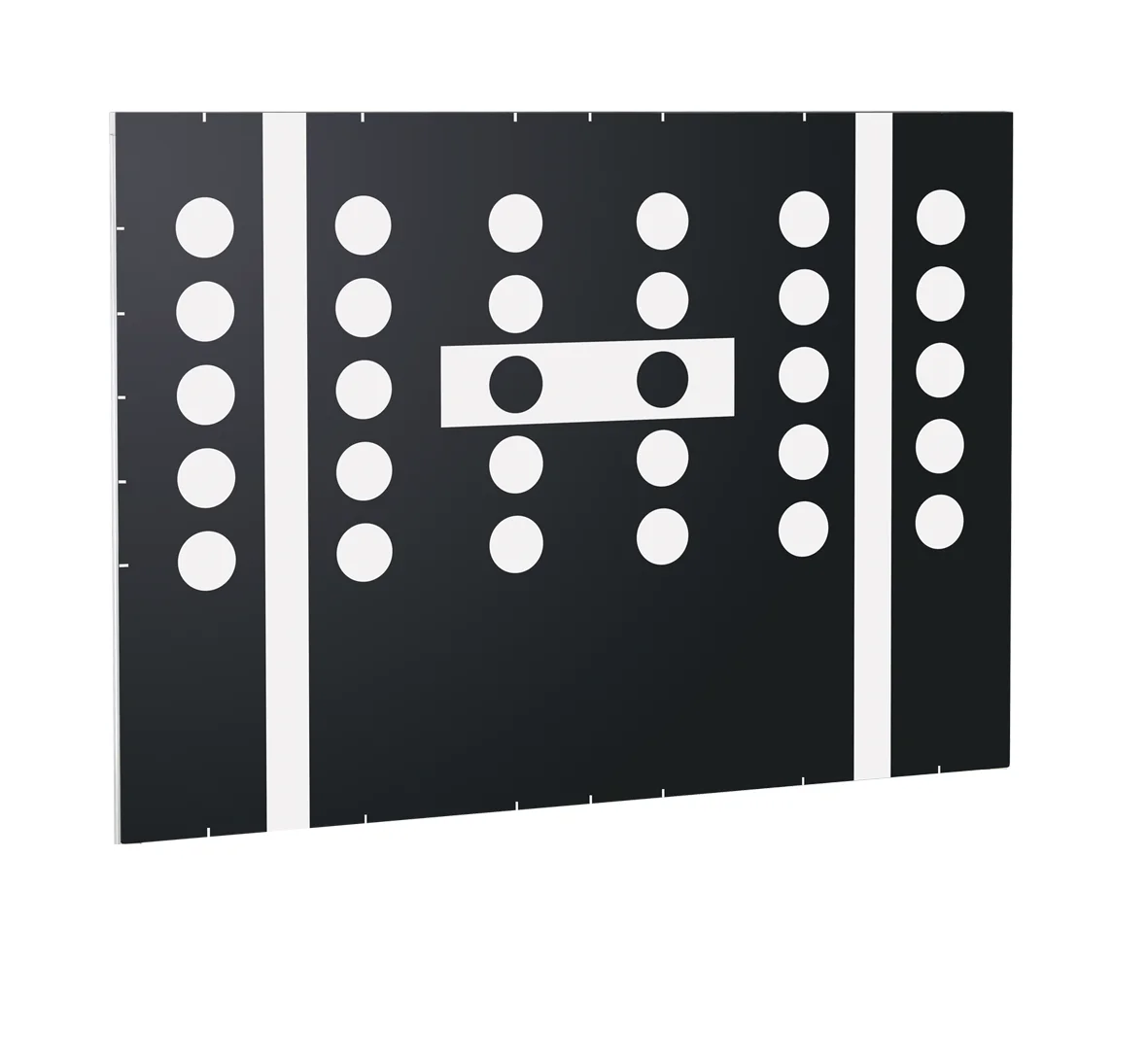

  • 2-in-1 XXL calibration board | for VW front camera and multi-brand radar | Q.DAS8 900 381 056

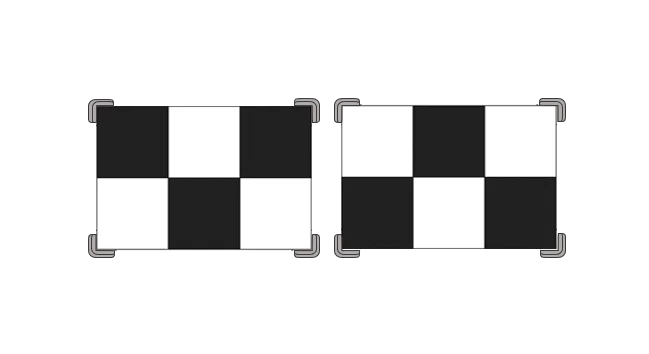

  • Calibration target set Nissan type 18 900 381 139

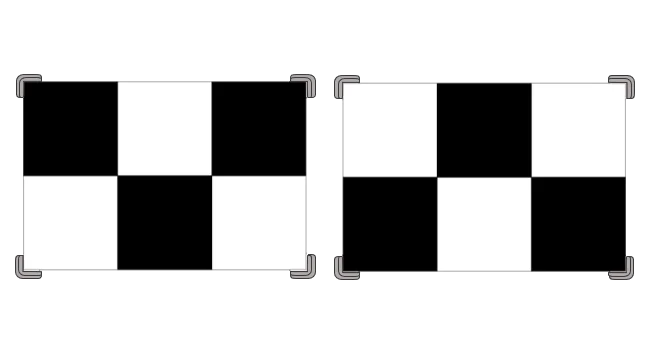

  • Calibration target set Nissan type 28 900 381 140
  • Calibration target set Universal type 28 900 381 142
  • Calibration target set Honda type 18 900 381 143
  • Calibration target Honda type 28 900 382 297
  • Calibration target Honda type 38 900 382 349
  • Calibration target set Mitsubishi type 18 900 381 218
  • Calibration target Mazda type 18 900 382 318
  • Calibration target set Mazda type 28 900 381 234
  • Calibration target Toyota type 18 900 382 287
  • Calibration target Toyota type 38 900 382 355
  • Calibration target Kia / Hyundai type 28 900 382 320
  • Calibration target Kia / Hyundai type 38 900 382 316
  • Calibration target Mercedes/Infinity type 18 900 382 312
  • Calibration target Mercedes / Infinity type 28 900 382 319
  • Calibration target Universal type 6S8 900 382 571
  • Calibration target Toyota type 28 900 382 328
  • Calibration target Subaru type 3S8 900 382 590
  • Calibration target Subaru type 2S8 900 382 608
  • ACC reflector mirror | for radar calibration8 900 381 150
  • Multi-Target starter kit 1 8 900 381 001
  • Multi-Target starter kit 2 8 900 381 002
  • Q.mApp | License Key 3658 900 388 001
  • Holder for laser distance meter | for VW calibration board 89003810568 900 381 092
