- Empty storagebox for storing the multi brand targets for front camera calibration.

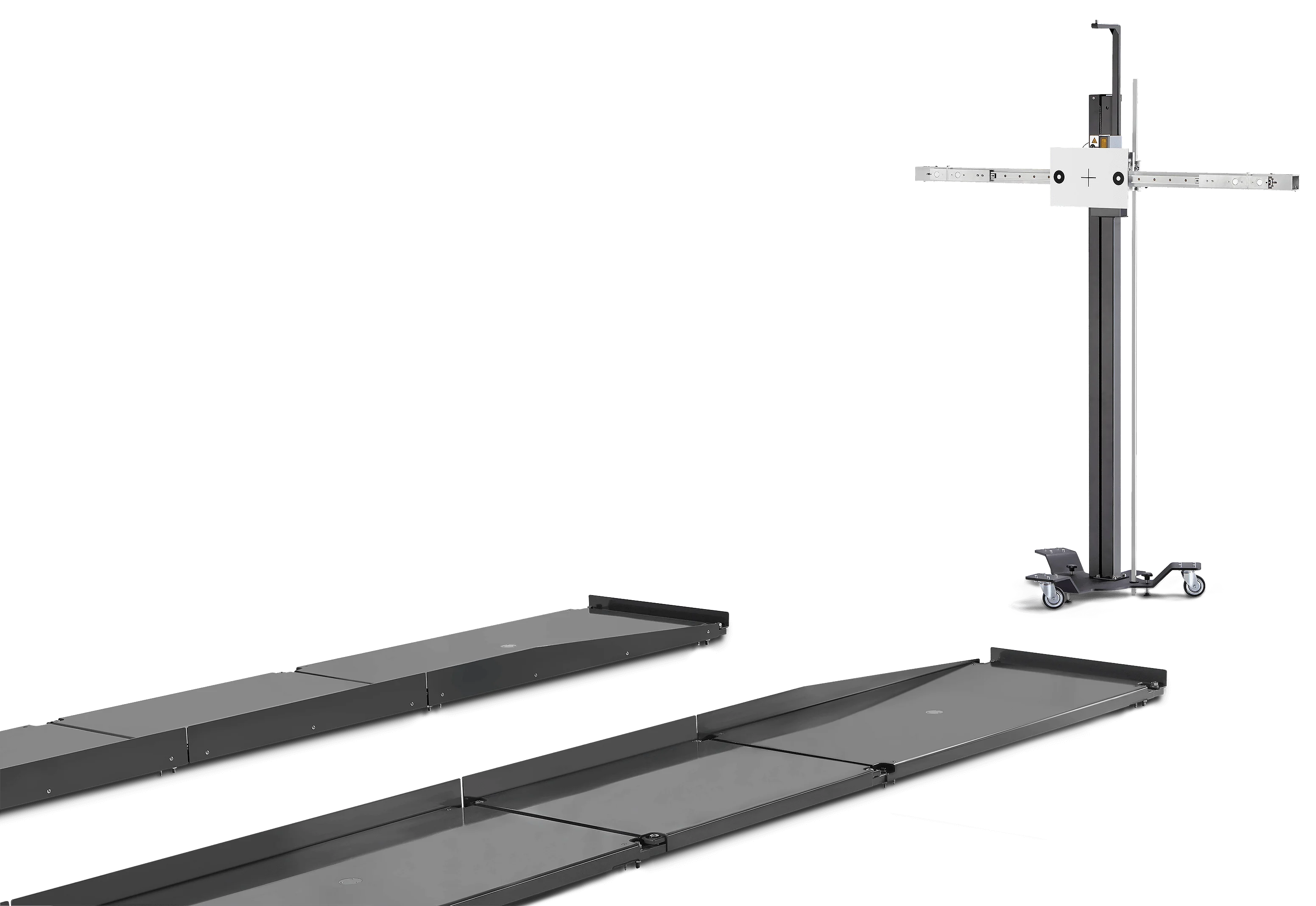

Front camera calibration with BBFAS 415 calibration device: Flexible, easy and precise
- static calibration of cameras e.g. Lane departure cameras, multifunction cameras
- Wide vehicle coverage through optional calibration Targets
- Fast, easy alignment to the vehicle's symmetrical axis or on to ground markings
- Alignment on to the vehicles track-width with optional accessories possible at any time
- Horizontal levelling according to precision spirit levels via three height-adjustable feet
- Precision crossbeam with slidingplate and fine adjusting screw
- Magnetic holding fixture for multi-brand calibration plates

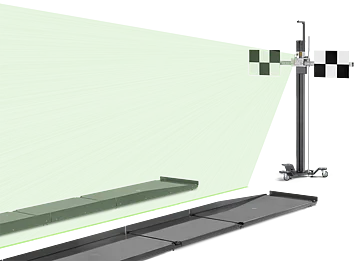

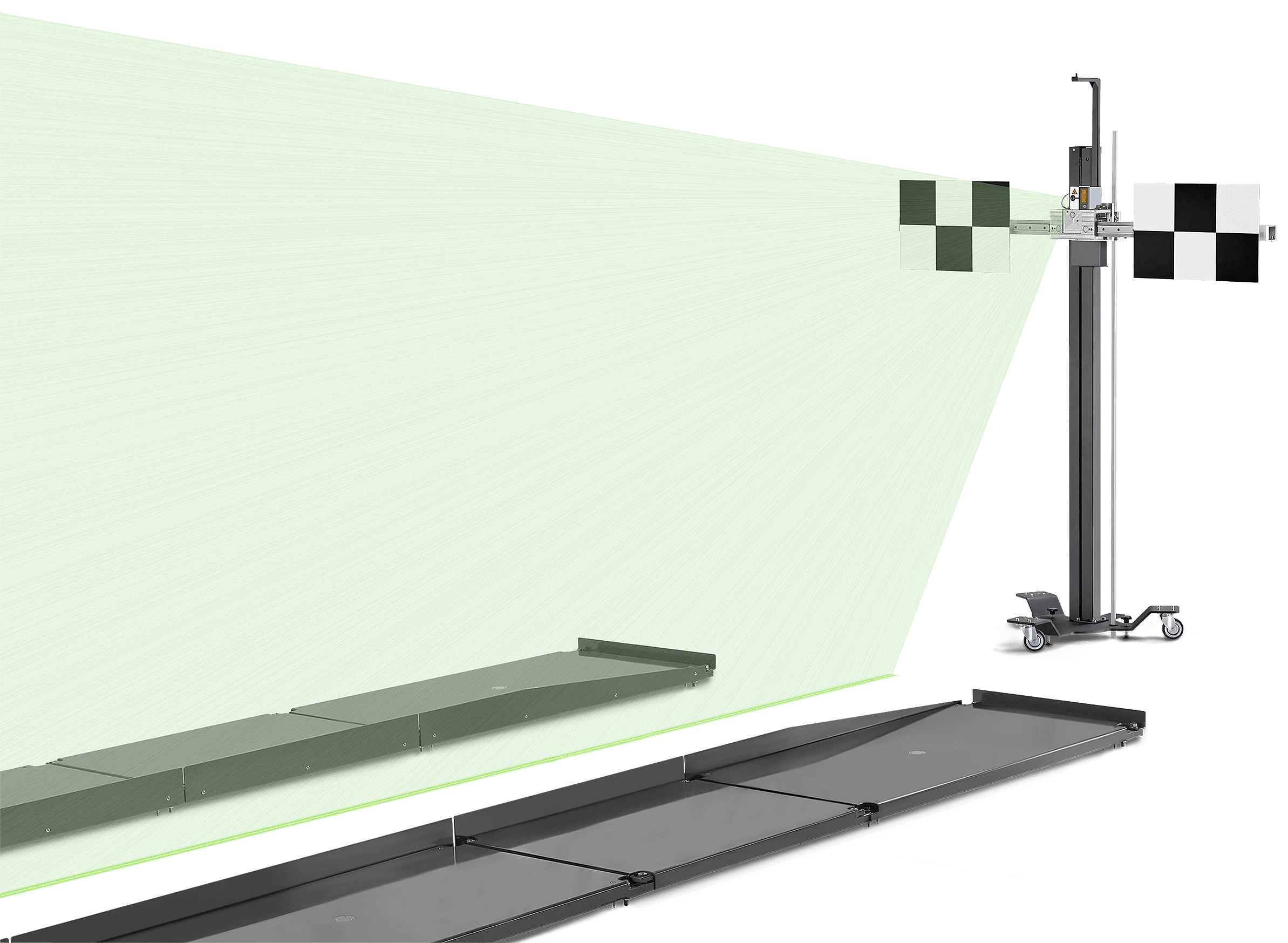

- High power line laser module with low laser class (1M). Green laser diodes are particularly well visible to the human eye because the eye has its maximum spectral sensitivity in the green range.
- Optional: Compact storage box for modular calibration boards
Note: For adjusting the driver assistance systems, an OBD diagnostic device is also required

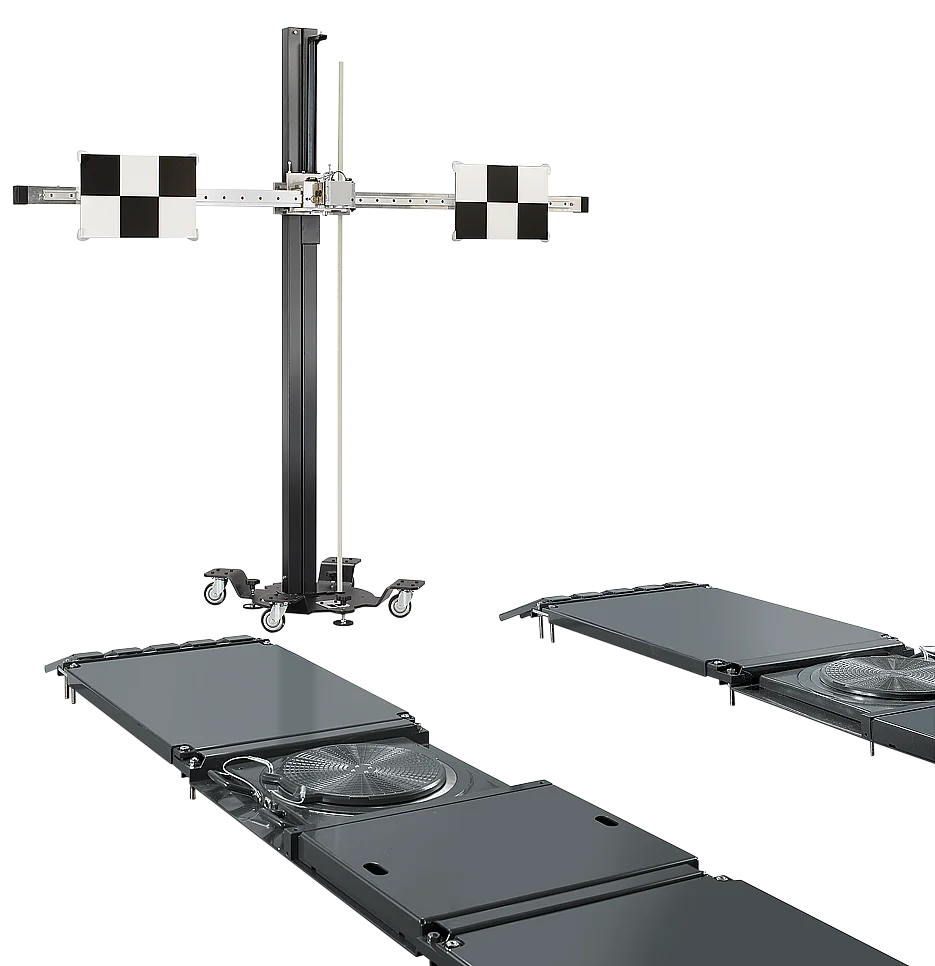

- Precision crossbar with 2 magnetic sliding-plates for mounting of calibration Targets
- 4-wheel trolley with stable column for holding the crossbar
- Line laser module for aligning the calibration device
- Ruler for height adjustment
Note: Necessary calibration targets are not included
| Weight | 51 kg |
|---|---|
| Packaging length | 2120 mm |
| Packaging width | 620 mm |
| Packaging height | 580 mm |
| Gross weight | 51 kg |
| Weight | 51 kg |
|---|---|
| Packaging length | 2120 mm |
| Packaging width | 620 mm |
| Packaging height | 580 mm |
|---|---|
| Gross weight | 51 kg |
- Target storage box empty1 690 381 2171 690 381 217
- Multi-Target starter kit 1 8 900 381 0018 900 381 001
- Multi-Target starter kit 1 with storagebox
Targets included:
- Nissan Set 1 (8 900 381 139)
- Toyota (8 900 382 287)
- Mercedes 1 / Infiniti 2 (8 900 382 312)
- Mazda 1 (8 900 382 318)
- Honda 3 (8 900 382 349)
- Toyota 3 (8 900 382 355)

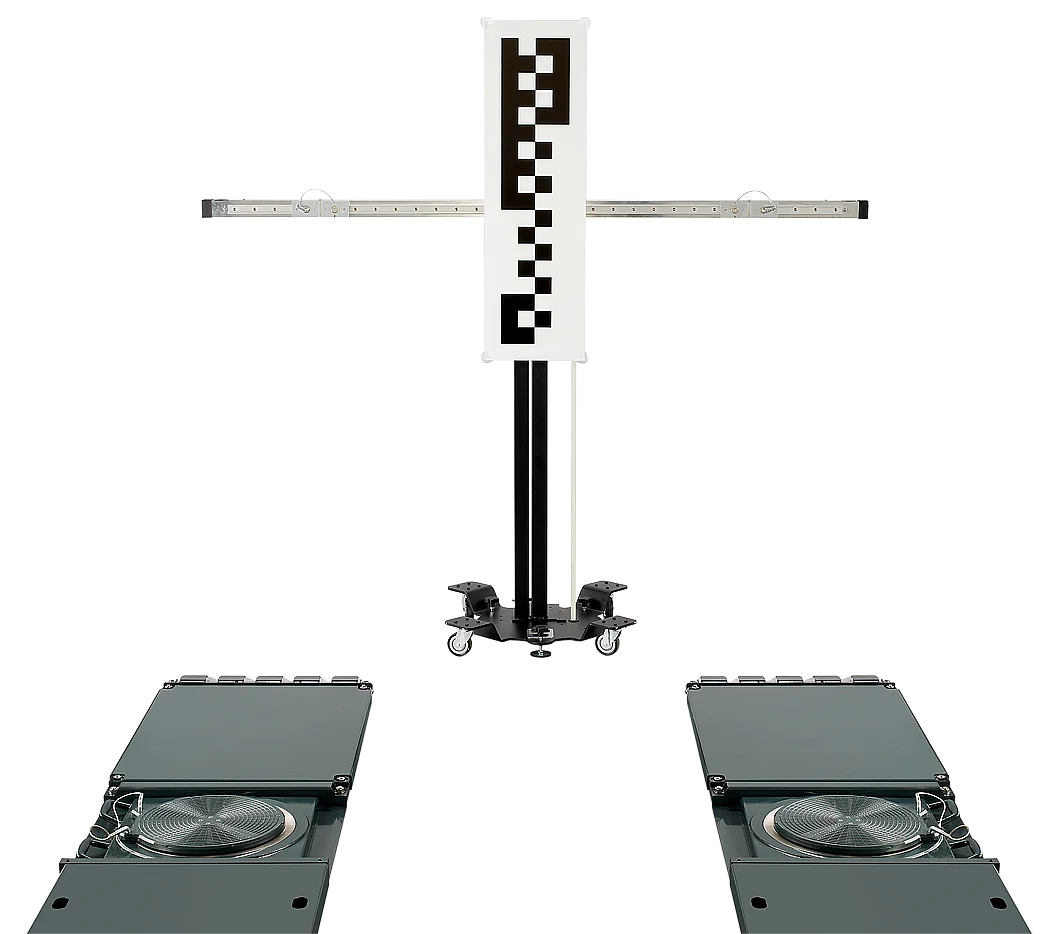

- Universal Target 1 (8 900 382 570)
- Multi-Target starter kit 2 8 900 381 0028 900 381 002
- Multi-Target starter kit 2 with storagebox
Targets included:
- Mercedes 1 / Infiniti 2 (8 900 382 312)
- Mercedes 2 (8 900 382 319)
- Universal Target 1 (8 900 382 570)
- Distance measurement laser for BB FAS 4158 900 381 0058 900 381 005
- P-Assist 8 900 381 1388 900 381 138
- P-Assist wheel stands: Front and rear wheel stands for P-Assist laser alignment system for alignment to wheel-track.
- Positioning target 8 900 381 2928 900 381 292
- Target panel for roof antennas for alignment with the vehicle's longitudinal axis
- Calibration target set Nissan type 18 900 381 1398 900 381 139
Nissan
- Qashqai [J11] year from 2013 to 2017-09
- Qashqai Facelift [J11] year from 2017-10
- X-Trail / Rouge [T32] Facelift year from 2017
- Calibration target set Nissan type 28 900 381 1408 900 381 140
Infiniti
- QX60 formerJX [L50]
- QX70 [Y51] = FX_Serie year from 2013
MERCEDES-BENZ
- X-Klasse [470, 471) year from 2017
Nissan
- Altima [L34] year from 2019
- Leaf [ZE1] year from 2018
- Maxima [A36] year from 2016
- Maxima [A36] year from 2015 to 2016
- Micra [K14] year from 2017
- X-Trail / Rouge [T32] year from 2013 to 2016
- Calibration target set Universal type 28 900 381 1428 900 381 142
NISSAN
- Cima; Fuga [Y51] = Infinity Q70
- NV400 [X62]
- Patrol [Y62] year from 2010
OPEL
- Movano-B
RENAULT
- (Grand) Espace V [xFC] year from 2015
- (Grand) Scenic III [J95] year from 2012
- Kadjar [HL/ HZH, HFE] year from 2015 to 2018
- Koleos II [HZG, HZJ] year from 2016
- Master III [x62] year from 2010
- Megane III [x95] year from 2008
- Megane IV [xFB] year from 2016
- Talisman [xFD] year from 2015
- Twingo III [B07] year from 2014
SMART
- ForFour [543.0] year from 2014
- ForTwo [543-3-4] year from 2014
- Calibration target set Honda type 18 900 381 1438 900 381 143
Honda [EU]
- Jazz / Fit [GK] year from 2015
- Civic (9) year from 2012 to 2016
- Civic Typ KG : year from 2016 to 2017
- HR-V [RU] year from 2015
Honda [US]
- Accord US year from 2013 to 2015
- Civic (5 door) year from 2016 to 2017
- Civic (Hybrid) year from 2012 to 2015
- CR-V year from 2017
- HR-V year from 2016 to 2017
- Calibration target set Mitsubishi type 18 900 381 2188 900 381 218
MITSUBISHI
- ASX / Outlander Sport [GA] year from 2018
- Eclipse Cross [GK] year from 2018
- Outlander III Facelift / PHEV year from 2017
- Calibration target set Mazda type 28 900 381 2348 900 381 234
MAZDA
- CX 5 [KF] year from 2017
- Series-3[BN] year from 2016-06
- Series-6 [GL] year from 2017
- Calibration target Toyota type 18 900 382 2878 900 382 287
LEXUS
- ES300h ES450h [V6#] year from 2012 to 2015
- GS-F, GS200t, GS250, GS300h GS350 GS450h [L1#] year from 2012
- LS460, LS600h [F4#] year from 2007
- NX200 NX300h [Z1#]
- RC-F, RC200t, RC350 [C1#] year from 2014
TOYOTA
- Auris / Corolla [E18#] with SafetySense 3-Step year from 2015 to 2018
- Avensis [T27#] with SafetySense 3-Step year from 2015
- Aygo [B4#] with SafetySense 3-Step year from 2015
- Camry [V5#] year from 2014
- C-HR X10/X50 year from 2017
- Highlander, Kluger [U5] year from 2013
- Mirai [JPD10] year from 2015
- Prius [W30] Prius [W40] year from 2009 to 2015
- RAV4 [A4] year from 2012 to 2015
- Verso [R2#] with SafetySense 3-Step year from 2016
- Yaris [P13#] with SafetySense 3-Step year from 2015 to 2017
- Yaris [P13#] with SafetySense 3-Step year from 2017
- Calibration target Honda type 28 900 382 2978 900 382 297
- Calibration target Mercedes/Infinity type 18 900 382 3128 900 382 312
MERCEDES-BENZ
- A-Klasse [176] year from 2012 to 2018
- B-Klasse [246] year from 2011-11 to 2018-11
- C-Klasse [204] +Facelift year from 2007 to 2014
- C-Klasse [205] year from 2014
- CL [216] year from 2006 to 2013
- CLA [117] year from 2013 to 2019
- CLS [218] year from 2011 to 2018
- E-Klasse [212] year from 2012 to 2016
- E-Klasse [213] year from 2016
- E-Klasse Coupe [207] year from 2009 to 2016
- E-Klasse Coupe [238] year from 2016
- GLA [156] year from 2013 to 156]
- GLC [253] year from 2015
- GLE [292] year from 2015 to 2019
- GLK [204] + Facelift year from 2008 to 2015
- M-Klasse (GL-Klasse) GLE, GLS [166] Camera system 4.0.1 year from 2011 to 2015
- M-Klasse (GL-Klasse) GLE, GLS [166] Camera system 4.0 year from 2011 to 2015
- M-Klasse [GL-Klasse) [164] year from 2006 to 2012
- S-Klasse [221] year from 2005 to 2013
- S-Klasse [222] year from 2013
- S-Klasse Coupe [217] year from 2014 to 217]
- SLK, SLC [172] year from 2011
- SL-Klasse [231] year from 2012
- SLR [190] year from 2014 to 2016
- V-Klasse[447] / Vito [448] year from 2014
- Calibration target Kia / Hyundai type 38 900 382 3168 900 382 316
Hyundai
- Equus [VI] year from 2016
- Genesis [BH] year from 2011 to 2014
- SantaFe [DM] Grand-SantaFe [NC] Sport-SantaFe MaxCruise [NC] year from 2015
KIA
- Cadenza / K7 [VG] year from 2009 to 2016
- Sorento [XM] year from 2009 to 2015
- Calibration target Mazda type 18 900 382 3188 900 382 318
MAZDA
- CX 3 [DK] year from 2015
- CX 5 [KE] year from 2012 to 2016
- CX 9 [TB]
- MX5 [ND]
- Serie-2 [DJ, DL]
- Series-3 [BM] year from 2013 to 2016-05
- Series-6 [GJ] year to 2016
- Calibration target Mercedes / Infinity type 28 900 382 3198 900 382 319
MERCEDES-BENZ
- Sprinter [W909] year from 2013 to 2019
- Sprinter 2500 / 3500 [W906] year from 2006 to 2013
VOLKSWAGEN
- Crafter [2E,2F] year from 2016 to 2017
- Calibration target Kia / Hyundai type 28 900 382 3208 900 382 320
Hyundai
- H350 [EU] year from 2015
- Calibration target Toyota type 28 900 382 3288 900 382 328
CITROEN
- C1 [B4] year from 2014
PEUGEOT [EU]
- 108 [B3]
TOYOTA
- Auris / Corolla [E18#] with SafetySense 1-Step year from 2015 to 2018
- Avensis [T27#] with SafetySense 1 -Step year from 2015
- Aygo [B4#] with SafetySense 1-Step year from 2015
- Verso [R2#] with SafetySense 1-Step year from 2016
- Yaris [P13#] with SafetySense 1-Step year from 2015 to 2017
- Yaris [P13#] with SafetySense 1-Step year from 2017
- Calibration target Honda type 38 900 382 3498 900 382 349
Honda [EU]
- Accord (9) [CR] year from 2014
- Civic Non KG: year from 2016 to 2017
- CR-V (4) [RM] year from 2012 to 2015
- CR-V (4) [RM] year from 2015 to 2017
- Calibration target Toyota type 38 900 382 3558 900 382 355
LEXUS
- ES300h ES450h [V6#] year from 2015
- IS200t IS300h IS350 [E3#]
- LS500h LS600h [F5#] w Mono-Front-Camera year from 2017
- LS500h LS600h [F5#] w Stereo-Front-Camera year from 2017
- LX570 [J20] year from 2007
- RX200t, RX350, RX450h, [L2#] year from 2015-09
TOYOTA
- Hilux_[N12, N13] year from 2015
- Prius [W50] year from 2015
- RAV4 [A4] year from 2015 to 2018
- Calibration target Universal type 6S8 900 382 5718 900 382 571
CITROEN
- C3 Aircross [A88] year from 2017
- DS3 Crossback [D34] year from 2019
- DS7 Crossback [X74] year from 2017
- Jumper 3 / Relay 3 [U9] year from 2014
FIAT
- 500X [334] year from 2015
- Ducato year from 2014
Hyundai
- Elantra [ADA] year from 2017
- Genesis [DH] year from 2014
- i10 [IA] year from 2017
- i20, i20 Active [GB] year from 2015
- i30 [GD] year from 2015
- i30 [PDE] year from 2017
- i40 [VF] year from 2012
- IONIQ [AE-HEV] year from 2017
- SantaFe[DM] year from 2016
- Sonata [LFA] year from 2016
- Tucson [TL] year from 2016
Jeep
- Renegade [BU] year from 2015
KIA
- Cadenza / K7 [YG] year from 2016
- Carens / Rondo [RP] year from 2014
- Ceed / Pro Ceed [JD] year from 2013
- Niro [DE] E-Niro year from 2017
- Optima [JF] year from 2016
- Optima [TF] year from 2015
- Rio (YB) year from 2017
- Sorento [UM] year from 2015
- Soul [PS] E-Soul year from 2015
OPEL
- Crossland X year from 2017
- Grandland X year from 2018
PEUGEOT [EU]
- 3008 II year from 2018
- 508 II year from 2018
- Boxer-3 / Manager [U9]
TESLA
- Model S year from 2016-10
- Model X year from 2016-10
- Calibration target Subaru type 3S8 900 382 5908 900 382 590
SUBARU
- Impreza G4, [GJ,GP/G13] year from 2011 to 2017
- Impreza G5 , [GK,GT] year from 2018
- Legacy [BN,BS] year from 2014
- Levorg [GP / V10,VM] year from 2014
- Liberty (au) [BN] year from 2014
- Outback [BR / B14] year from 2015
- Outback [BS /B15] year from 2014
- WRX [VA /V10] year from 2014
- XV / Crosstrek [GP, G33] year from 2015
- Calibration target Subaru type 2S8 900 382 6088 900 382 608
SUBARU
- Forester G3 (AUS), [SH /S13] year from 2012
- Forester G4 (AUS), [SJ] year from 2014
- Impreza G4 (AUS), [GJ,GP/G23] year from 2011 to 2015
- Legacy [BM,BR / B13] year from 2012
- Outback [BR / B14] year from 2012 to 2015
- XV / Crosstrek [GP, G33] year from 2011 to 2015
