- Your test bay for headlight testing - Levelled according to the German PTI directive - In line with the guideline
- Ground-based solution as a leveled alternative to lifts(economical, space-saving, maintenance-free)
- Practical retrofit solution for uneven workshop floors

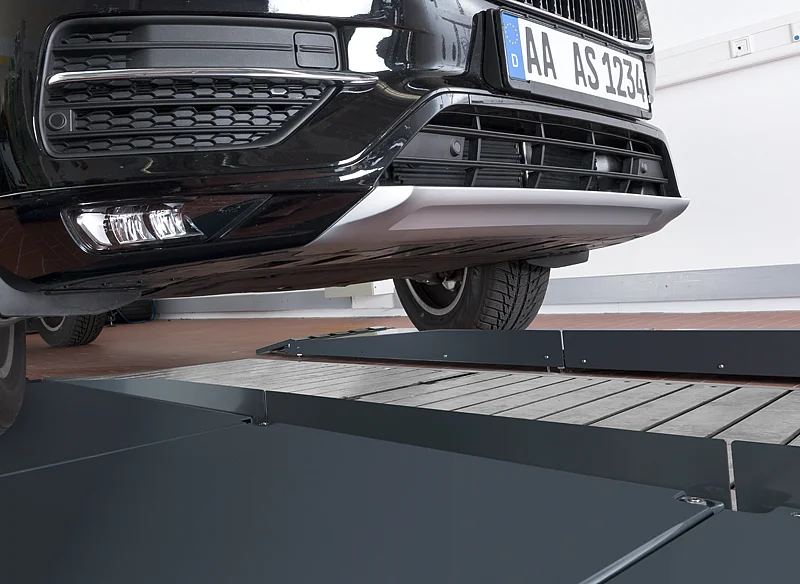

- Particularly suitable for installation on workshop pits
- Modular design
- Drive-through solutions for vehicle check-in (option)
- Compensation and fine adjustment by means of 4 wheel set-up elements (4-meter version)
- Robust thanks to KTL powder coating
- Wheel alignment checks for wheelbases up to 4325 mm (with extension)

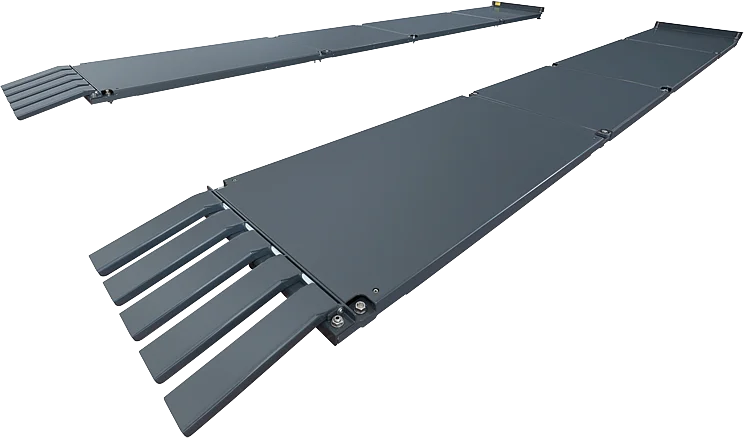

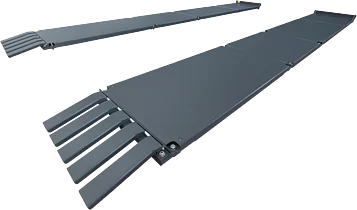

LTB 100: The right modules for your workshop

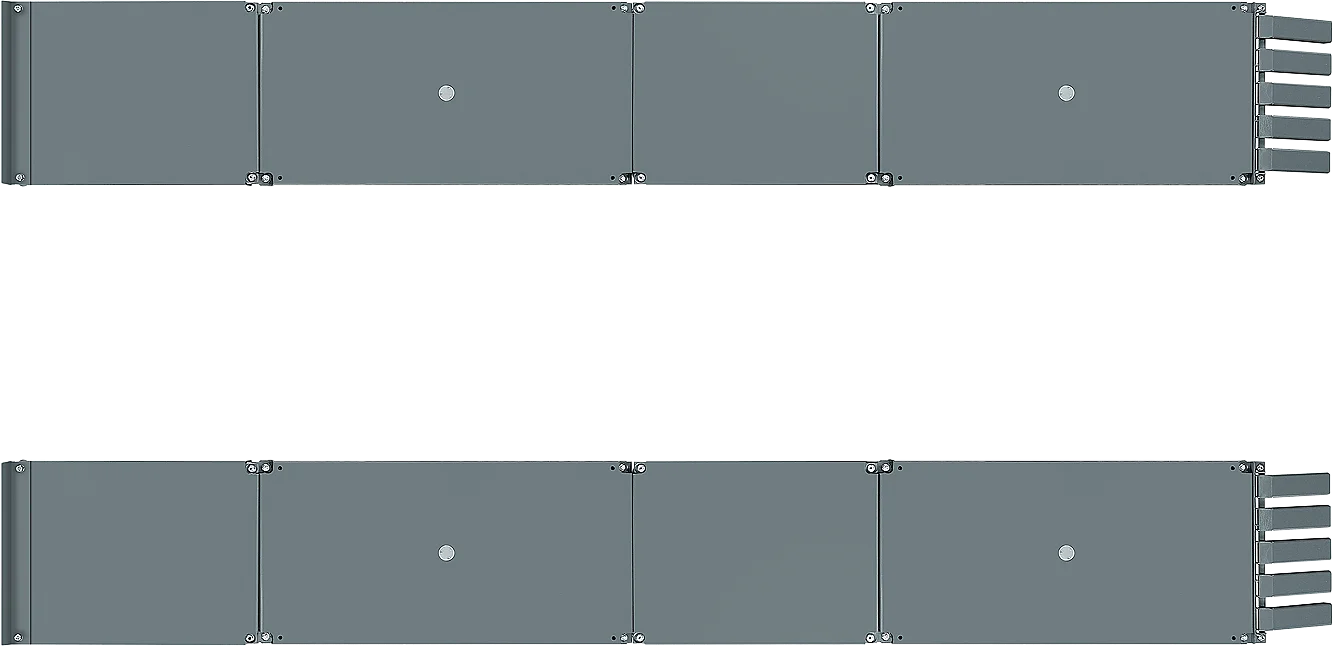

- Expandable by LTB modules e.g. - to a system length of 6 m (standard 4 m) for wheelbases from 1810 - 4325 mm - with drive-on ramp as a drive-through solution - for wheel alignment from small cars to vans
| Length | 4000 mm |
|---|---|
| Height | 54 mm |
| Packaging unit | 1 Pallet(s) |
| Max. axle weight | 2,5 t |
| Packaging length | 1300 mm |
| Packaging width | 800 mm |
| Packaging height | 650 mm |
| Gross weight | 358 kg |
| Max. drive-over load | 5 t |
| Ausgleichshöhe max. | 40 mm |
| Length | 4000 mm |
|---|---|
| Height | 54 mm |
| Packaging unit | 1 Pallet(s) |
| Max. axle weight | 2,5 t |
| Packaging length | 1300 mm |
| Packaging width | 800 mm |
| Packaging height | 650 mm |
|---|---|
| Gross weight | 358 kg |
| Max. drive-over load | 5 t |
| Ausgleichshöhe max. | 40 mm |

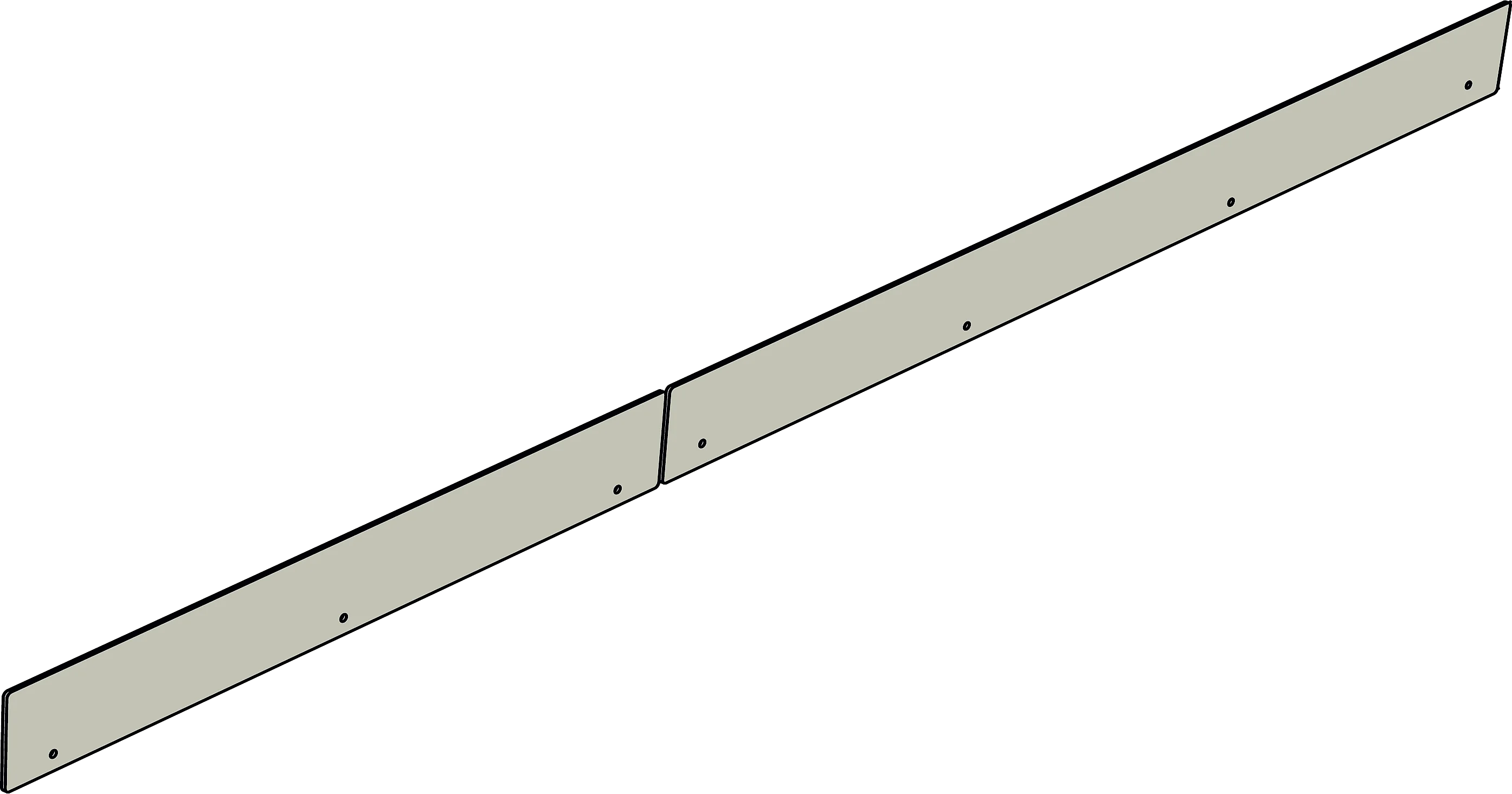

- Pit drive-in protection for LTB 100 | 4 m1 692 100 0331 692 100 033
- Extension of pit drive-in protection for LTB 100 | 2 m1 692 100 0371 692 100 037

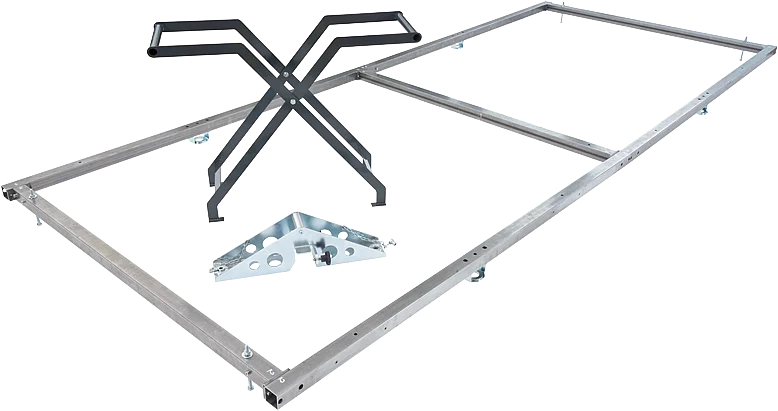

- Installation kit for LTB 100/3001 692 102 2041 692 102 204
Drilling patterns with carrying pliers | incl. transport box

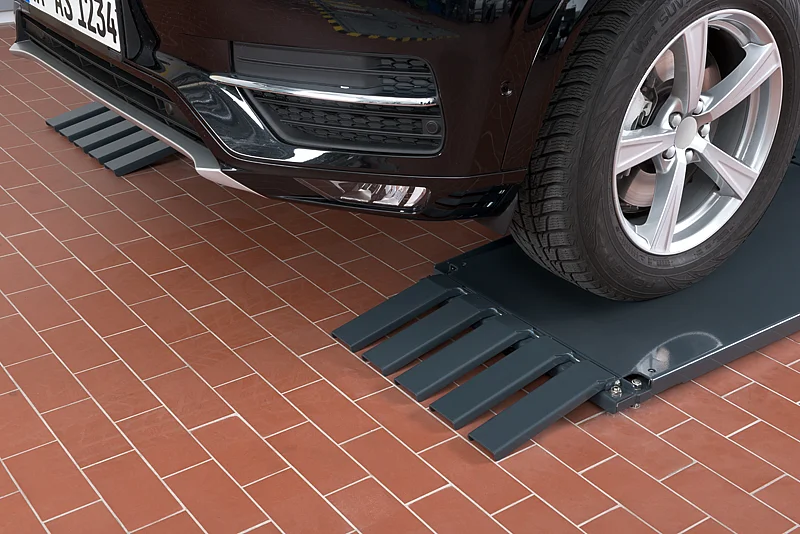

- Drive-off ramps set for LTB 100/300 | 2 pcs.1 692 100 0321 692 100 032
incl. Instalation materials

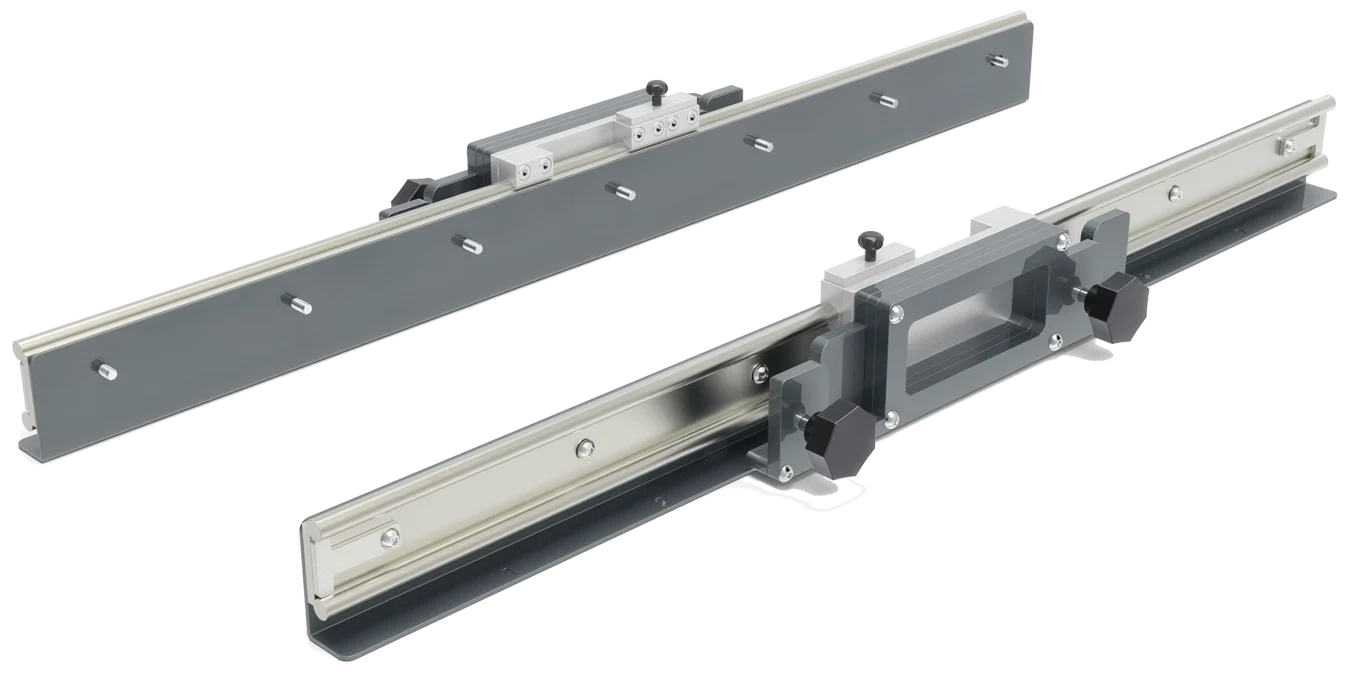

- Floor adapter for LTB 100/3001 690 701 5061 690 701 506
- Floor adapter - Levelled Test Bay LTB 100/300
- For attachment of Easy 3D sensor heads on levelled test bays LTB 100 and LTB 300
- Position of sensor head is adjustable in vehicle direction via rail system
