• Integrated Icperform PC Kit with ICperform Software License and Tablet App License1 691 601 9641 691 601 964

  Computer interface kit for installation into the new control cabinet, direct connection to the computer via USB cable (up to 1.5 m), USB board for control cabinet, USB cable, ICperfrom Garage Car Software License and Tablet App License (not for test lane)


• External Icperform PC Kit with Icperform Software License and Tablet App License1 691 601 9651 691 601 965

  Computer interface kit with BUS cable for larger distances (standard 15 m, optional 30 m), USB box, USB cable, Icperform Garage Car Software License and Tablet App License (not for test lane)


• Integrated Icperform PC kit - IR with IR remote control and ICperform Software License1 691 601 9631 691 601 963

  Computer interface kit for installation into the new control cabinet, direct connection to the computer via USB cable (up to 1.5 m), USB board for control cabinet, USB cable, remote control and receiver, ICperform Garage Car Software License (not for test lane) | Prerequisite: serial PC interface (COM) for the operation of the receiver


• External Icperform PC kit with IR remote control and Icperform Software License1 691 601 9661 691 601 966

  PC connection kit with BUS Cable for long distances (standard 15 m, optional 30 m), USB-Box, USB cable, Remote control, ICperform Garage Car Software License (not for test lane) | Prerequisite: serial PC interface (COM) for the operation of the receiver


• Remote control 1 691 701 0181 691 701 018

  Already available in some of SW Kits, but also can be sold separatly | incl. Battery

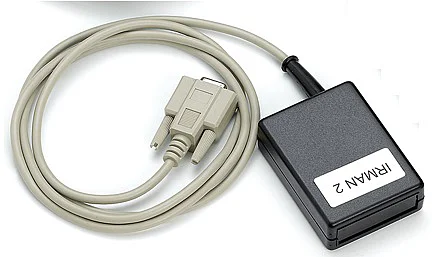

• IR receiver 1 693 770 0011 693 770 001

  Already available in some of SW Kits, but also can be sold separatly


• Extension cable for receiver | 10 m1 691 603 0001 691 603 000

  Enabels flexibility of the IR receiver position (up to 10 m)

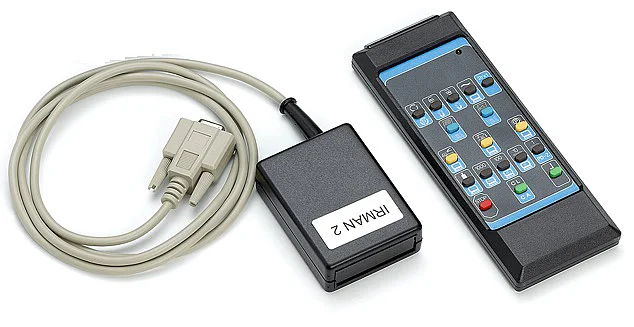

• Remote control and IR Receiver1 691 701 3111 691 701 311

  incl. Battery


• Testlane PC with a serial interface1 691 810 7031 691 810 703

  System requirements when using your separate PC:

  • Operating system: Windows 7, Windows 10, 64 Bit
  • Processor: Celeron 2.7 GHz
  • Random access memory: 4 GB
  • Hard disk: 500 GB
  • Serial port: 2 x RS232 (COM)


• PC cabinet Standard | empty1 691 811 2501 691 811 250

  Moving trolly enables the best arrangement and positioning of all PC components | Empty trolly! To add PC component you can additionally order 1 691 810 743.


• PC gear pack for PC cabinet Standard1 691 810 7431 691 810 743

  Full PC equipment | incl. PC, monitor, monitor holder, mouse, keyboard and printer


• Monitor holder 17 - 27"1 693 740 8841 693 740 884

  Includes only the monitor holder (Monitor not included)


• Monitor holder 22 - 35"1 693 740 9111 693 740 911

  Includes only the monitor holder (Monitor not included)


• Display RAL 7040 | analog, oval | swivel arm, IR receiver1 691 601 7711 691 601 771


• Display RAL 7016 | analog, rectangular | LCD, swivel arm, IR receiver1 691 601 7621 691 601 762

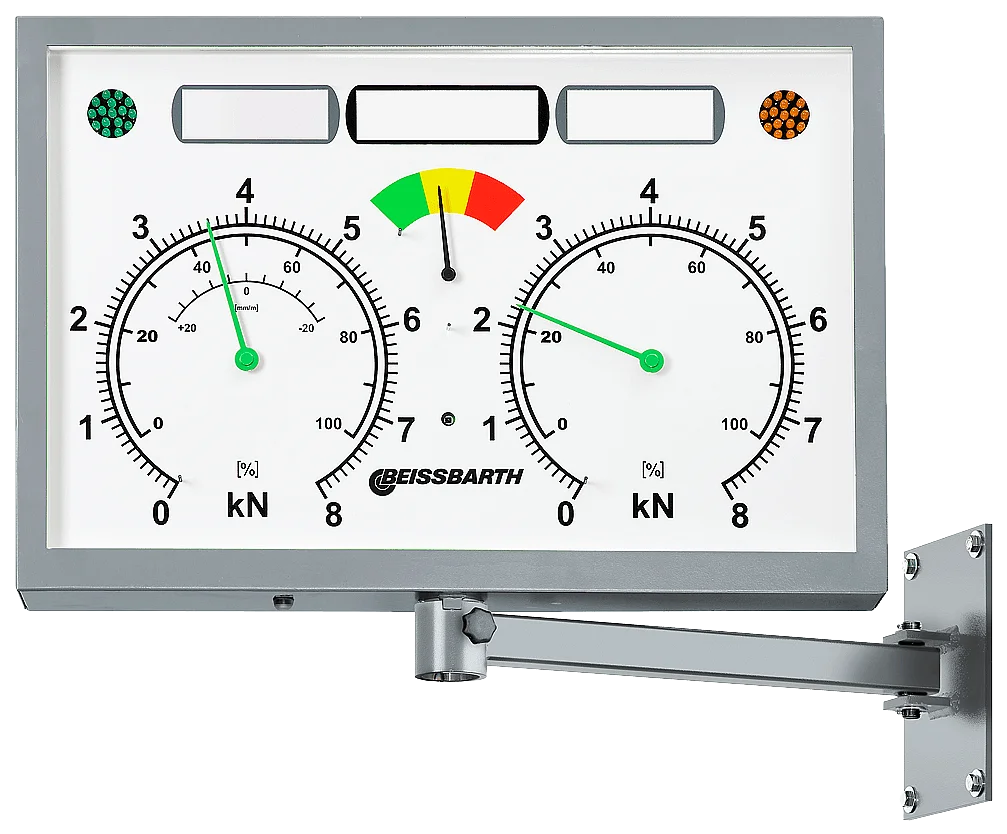

• Display RAL 7040 | analog, rectangular | swivel arm, IR receiver1 691 601 7761 691 601 776


• Stand column aluminium | RAL 7016 | for TV Monitor / rectangular analog display1 691 810 7221 691 810 722

  Alternative to wall mounting, mounting solution for TV monitors or square analogue displays | TV adapter for stand column / swivel arm (item no. 1 691 810 722) is also required to attach a TV monitor!


• Stand column RAL 7040 | for TV Monitor / oval analog display1 691 600 4701 691 600 470

  Alternative to wall mounting, mounting solution for TV monitors or oval analogue displays


• TV Adapter for stand column1 691 812 3241 691 812 324

  for stand column (1 691 600 470)


• TV adapter for stand column / swivel arm1 691 812 3251 691 812 325

  TV mount for wall mounting on the swivel arm (item no. 1 691 601 959) or for floor mounting with stand column (item no. 1 691 810 722)


• Swivel arm for TV adapter1 691 601 9591 691 601 959

  Scope of delivery for all analogue displays | Can also be ordered separately to mount the TV monitor on the wall (Additional TV adapter for stand column / swivel arm (item no. 1 691 812 325) required!)


• Stand column for Power-Box1 691 601 4351 691 601 435

  Alternative to wall mounting of the Power-Box (included with all brake testers)


• Edge protection for car brake tester | 700 mm1 691 602 0001 691 602 000

  Edge protection for single brake tester with 700 mm roller length


• Installation frame for car brake tester | 700 mm1 691 602 1151 691 602 115

  Installation frame for single brake tester with 700 mm roller length


• Drive-over plate swiveling | 700 mm1 691 601 0111 691 601 011

  Swiveling drive-over plate for roller set with 700 mm (2 pieces)


• Drive-over plate pluggable | 700 mm1 691 601 0101 691 601 010

  Pluggable drive-over plate for roller set with 700 mm (2 pices)


• Axle load scale 4 sensors1 691 601 6061 691 601 606

  4 sensors used to determine vehicle axle load. Additionally requires support strips 1691601009 when brake tester is installed without inground frame.


• Support strips for axle load scales | 2 pcs1 691 601 0091 691 601 009

  This solid support is used to adjust the screws of the axle load weighting sensors. Only required when brake tester is installed without inground frame.


• Pedal force wireless1 691 601 4011 691 601 401


• Smooth start 400 V1 691 601 4371 691 601 437

  for smoother start of brake tester operation | for countries using 400 V


• Cableset 400 V | Power-Box to roller set | 30 m1 691 601 4441 691 601 444

  Extention cable for connecting the Power-Box to roller set

• Joint play detector GST 651 | 230 V1 691 650 0011 691 650 001
  • The geometry of the axle to be tested is displaced by moving the test plates of the GST 6xx. This makes it possible to detect impermissible play at joints and wheel bearings or to localise cracks at stub axles for example.
  • The GST 651 is only to be used for the inspection of double-track vehicles with a maximum axle load of 4000 kg.
  • Remote control over control lamp with control buttons (Ø 60 mm, length 205 mm, incl. Halogen bulb with reflector, GU5,3 / 38°, 12 V / 20 W)


• Joint play detector GST 651 | 400 V1 691 650 0001 691 650 000
  • The geometry of the axle to be tested is displaced by moving the test plates of the GST 6xx. This makes it possible to detect impermissible play at joints and wheel bearings or to localise cracks at stub axles for example.
  • The GST 651 is only to be used for the inspection of double-track vehicles with a maximum axle load of 4000 kg.
  • Remote control over control lamp with control buttons (Ø 60 mm, length 205 mm, incl. Halogen bulb with reflector, GU5,3 / 38°, 12 V / 20 W)


• Digital calibration kit for brake tester1 691 601 3921 691 601 392

  Digital calibration kit with transport suitcase, digital sensor and calibration manual


• Installation frame for play detector GST 6511 691 651 0011 691 651 001


• Lifting and lowering device | HUS 104 | for BD 4xxx and QB.4 brake tester | 700mm1 691 600 0151 691 600 015

  The solution that allows the fully automated lowering and lifting of the axle in and out of the brake tester:

  • Ideal for premium vehicles or cars with low ground clearance
  • Easier entry and exit of the roller brake tester
  • The automatic lowering and lifting respects all necessary safety requirements

  Recommended for intensive use in PTI inspection centers:

  • Enables a more fluid, faster and simplified procedure
  • Increases the safety of the brake tester
  • Increases the longevity of mechanical components (reduces undesired shocks and accelerations of the bench)
  • Minimizes the risk of spoiler damage in sports cars
  • Fully automated
